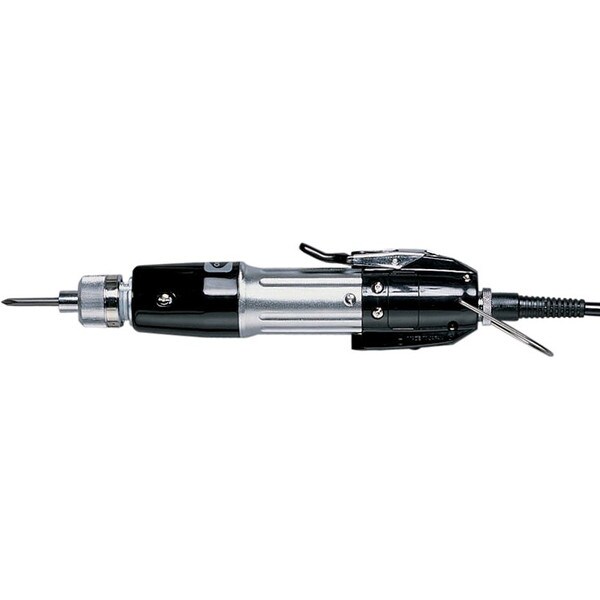

CL-6500-X | Electric Screwdriver, Lever Start, 2.6 - 14 in lbs, 1/4 in. Hex drive
Overview
Introducing the HIOS CL-6500X Electric Screwdriver, a remarkable assembly tool that combines power, precision, and efficiency. Engineered by HIOS, this electric screwdriver is designed to streamline your fastening tasks and elevate your productivity to new heights.
- Min Torque(In Lb: 2.6)
- Max Torque(In Lb: 14)
- Drive Size: 1/4'' hex
- Free Speed(RPM): 600 - 900
- Voltage: 120V
- Start Type: Lever Start
Features & Benefits
- Lever Start Mechanism: The CL-6500X features a convenient lever start mechanism, providing effortless operation and precise control during assembly processes.
- Versatile Torque Range: With a torque range from 2.6 to 14 in lbs, this electric screwdriver adapts to various fastening applications, ensuring accurate and reliable results.
- Variable Speed Control: The CL-6500X comes with variable speed control, allowing you to adjust the speed from 600 to 900 RPM to suit different fastening requirements.
- 1/4'' Hex Drive: The 1/4'' hex drive size offers compatibility with a wide range of screwdriver bits, making it a versatile tool for diverse assembly needs.
Technical Specifications
Series
CL
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushed
Drive size
1/4'' Hex
Free Speed (RPM)
600 - 900
Torque Range (in lb)
2.6 - 14
Torque Range (Nm)
0.3 - 1.6
Torque Range (kgf cm)
3 - 16
Technical Documents
HIOS CL Series Electric Screwdriver Operation Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CL6500X?
What type of application is the CL6500X best suited for?
Electric Screwdrivers like the CL6500X, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the CL6500X?
The CL6500X can go up to 900 rpm.
How do I set the torque on the CL6500X?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CL6500X have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
