VB1510PSX-120 | Electric Screwdriver, Push-to-Start, 2.2 - 13 in lbs, 1/4 in. Hex drive

(0)No Reviews yet
$1,015.38
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

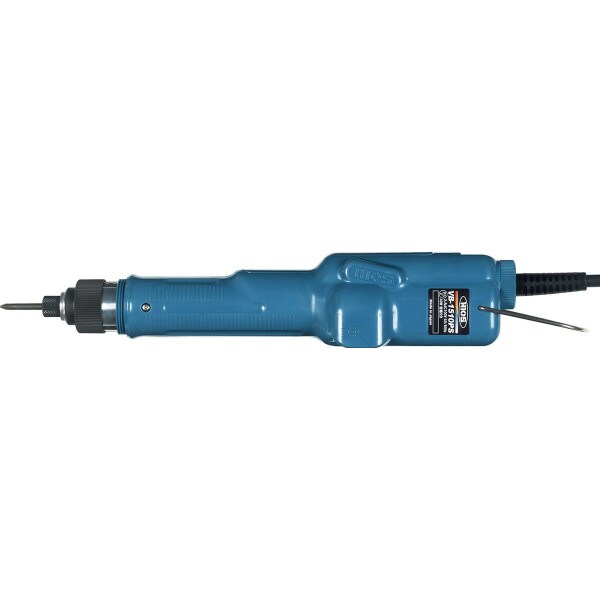

Introducing the HIOS VB1510PSX-120 Electric Screwdriver, a powerful and versatile assembly tool designed to streamline your fastening tasks. Manufactured by HIOS, this electric screwdriver combines precision, efficiency, and ease of use to elevate your assembly operations.

  • Min Torque(In Lb: 2.2)
  • Max Torque(In Lb: 13)
  • Drive Size: 1/4'' hex
  • Free Speed(RPM): 970
  • Voltage: 120V
  • Start Type: Push-to-Start
Back

Features & Benefits

  • Push-to-Start Mechanism: The VB1510PSX-120 features a convenient push-to-start mechanism, allowing for effortless operation and precise control during assembly processes.
  • Versatile Torque Range: With a torque range from 2.2 to 13 in lbs, this electric screwdriver adapts to a wide array of fastening applications, providing flexibility and accuracy.
  • High Free Speed: The VB1510PSX-120 boasts a high free speed of 970 RPM, enabling efficient and rapid fastening tasks.
  • 1/4'' Hex Drive: The 1/4'' hex drive size ensures compatibility with various screwdriver bits, making it a versatile tool for diverse assembly needs.
Back

Technical Specifications

Series
VB
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushless
Drive size
1/4'' Hex
Free Speed (RPM)
970
Torque Range (in lb)
2.2 - 13
Torque Range (Nm)
0.25 - 1.5
Torque Range (kgf cm)
1.5 - 15
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the VB1510PSX-120?

The VB1510PSX-120 has a torque range from 2.2 to 13 in lbs (0.25 - 1.5 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the VB1510PSX-120, are most commonly used for medium to heavy assembly applications where precise torque control is required.
The VB1510PSX-120 can go up to 970 rpm.

There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
