VB1820PSH5X-120 | Electric Screwdriver, Push-to-Start, 3.5 - 16 in lbs, H5 drive

(0)No Reviews yet
$963.66
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

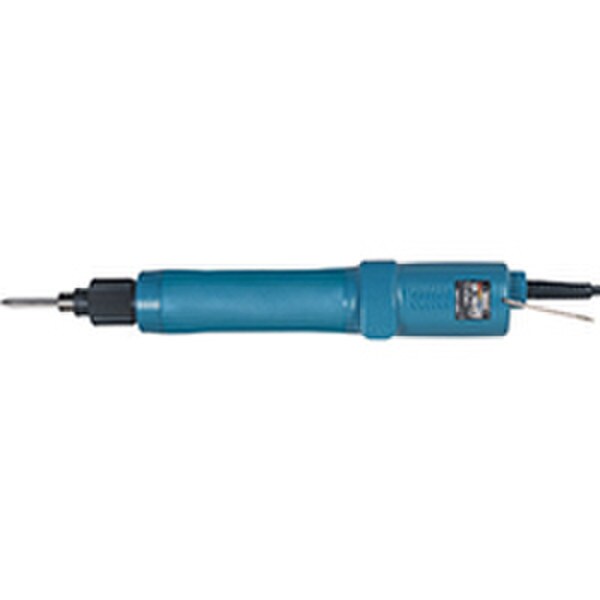

Introducing the HIOS VB1820PSH5X-120 Electric Screwdriver, a powerful and versatile tool designed to streamline your assembly operations. Manufactured by HIOS, this electric screwdriver combines precision, efficiency, and ease of use to take your fastening tasks to the next level.

  • Min Torque(In Lb: 3.5)
  • Max Torque(In Lb: 16)
  • Drive Size: H5
  • Free Speed(RPM): 1200
  • Voltage: 120V
  • Start Type: Push-to-Start
Back

Features & Benefits

  • Push-to-Start Mechanism: The VB1820PSH5X-120 features a convenient push-to-start mechanism, allowing for effortless operation and precise control during assembly processes.
  • Versatile Torque Range: With a torque range from 3.5 to 16 in lbs, this electric screwdriver adapts to a wide array of fastening applications, providing flexibility and accuracy.
  • High Free Speed: The screwdriver's impressive free speed of 1200 RPM ensures fast and efficient driving of screws, reducing assembly time.
  • H5 Drive Size: The H5 drive size is optimized for various fastening needs, striking a balance between power and precision.
Back

Technical Specifications

Series
VB
Type
Electric Torque Screwdriver
Grip Type
Inline
Motor Type
Brushless
Drive size
H5
Torque Range (in lb)
3.5 - 16
Torque Range (Nm)
0.4 - 1.8
Torque Range (kgf cm)
4 - 18
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the VB1820PSH5X-120?

The VB1820PSH5X-120 has a torque range from 3.5 to 16 in lbs (0.4 - 1.8 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the VB1820PSH5X-120, are most commonly used for medium to heavy assembly applications where precise torque control is required.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
