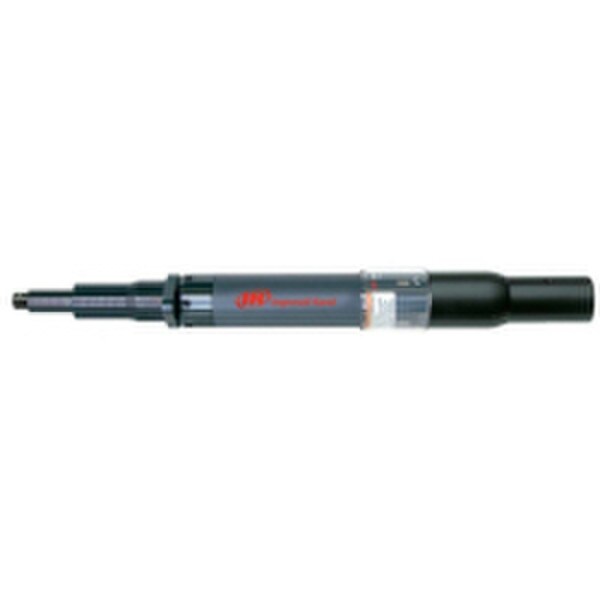

QE2SC010F32S06 | Inline Electric Nutrunner, 10 Nm, 3/8'' square
Overview
Ingersoll Rand Inline Air Nutrunner, 10 Nm, 3/8 in. square drive
Inline Air Nutrunner, 10 Nm, 3/8 in. square drive, model# QE2SC010F32S06. Do you see this Ingersoll Rand Air Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE2SC010F32S06 by Ingersoll Rand
With a torque range from 0.3 Nm to 400 Nm and variable speeds up to 3,000 rpm, the QE2 Inline series is great for any tightening job when you need to get your work done quickly and efficiently.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- User Efficiency - Featuring TactAlert, preventative maintenance alarms, LED headlights and more, this series was created to maximize productivity and minimize distraction.
- Versatile - With a highly configurable platform, you can put together exactly the tool you need for each individual application.
- Reliable - Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor, these tools provide exceptional reliability.
Note: IC12D1A1AWS Controller required
Features & Benefits
- Provides exceptionable accuracy and traceability
- TactAlert, preventative maintenance alarms, LED headlights and more
- ESD-Safe & RoHS compliant
- Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor
Technical Specifications
Model
QE2SC010F32S06
Type
Electric Nutrunner
Drive size
3/8'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 2
Free Speed (RPM)
850
SKU
QE2SC010F32S06
Stock Code
3
Start Type
Remote Start
Style
Inline
Min Torque (In Lb)
17.7
Max Torque (In Lb)
88.5
Max Torque (Nm)
10
ESD Compliant
Yes
Mounting
Flanged Gearcase
Square Drive
3/8
Max Free Speed (rpm)
8500
Output
50mm spindle, 19mm float
Series
QE2
Drive Type
3/8'' square
