QE2TS005P11S04 | Inline Electric Nutrunner, 5 Nm, 1/4'' square
Overview

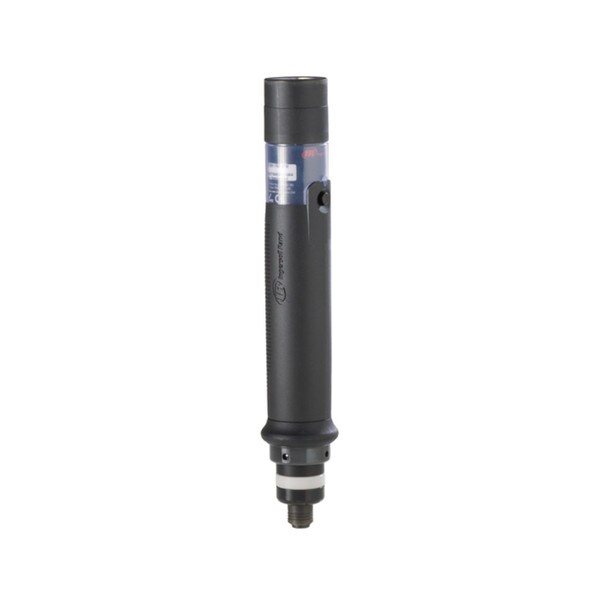

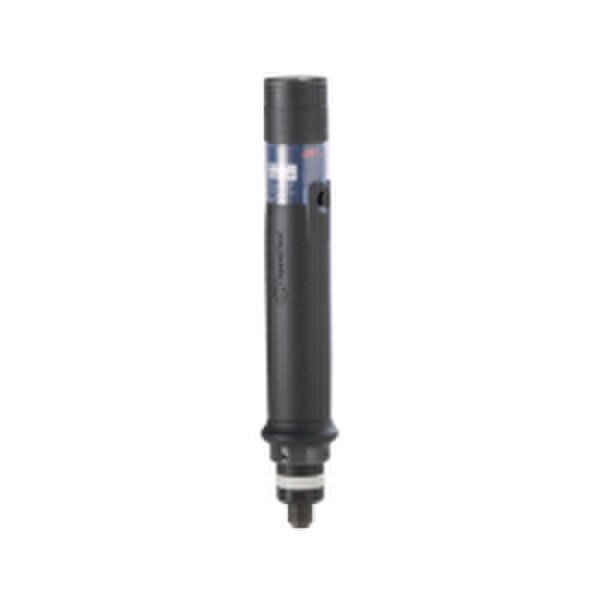

Ingersoll Rand Inline Air Nutrunner, 5 Nm, 1/4 in. square drive
Inline Air Nutrunner, 5 Nm, 1/4 in. square drive, model# QE2TS005P11S04; available to order from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE2TS005P11S04 by Ingersoll Rand
With a torque range from 0.3 Nm to 400 Nm and variable speeds up to 3,000 rpm, the QE2 Inline series is great for any tightening job when you need to get your work done quickly and efficiently.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- User Efficiency - Featuring TactAlert, preventative maintenance alarms, LED headlights and more, this series was created to maximize productivity and minimize distraction.
- Versatile - With a highly configurable platform, you can put together exactly the tool you need for each individual application.
- Reliable - Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor, these tools provide exceptional reliability.
Note: QCD11 Controller and CPS2-C0RD-3M cable required
Features & Benefits
- Provides exceptionable accuracy and traceability
- TactAlert, preventative maintenance alarms, LED headlights and more
- ESD-Safe & RoHS compliant
- Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor
Technical Specifications
Model
QE2TS005P11S04
Type
Electric Nutrunner
Drive size
1/4'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 2
Free Speed (RPM)
1700
SKU
QE2TS005P11S04
Stock Code
3
Start Type
Push-to-Start
Style
Inline
Min Torque (In Lb)
8.9
Max Torque (In Lb)
44.3
Min Torque (Nm)
1
Max Torque (Nm)
5
ESD Compliant
Yes
Mounting
Standard Gearcase
Output
Trigger, Push-to-Start
Series
QE2
Drive Type
1/4" square
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
