QE4AT013PA2S06 | Angle Electric Nutrunner, 13 Nm, 3/8'' square

(0)No Reviews yet
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

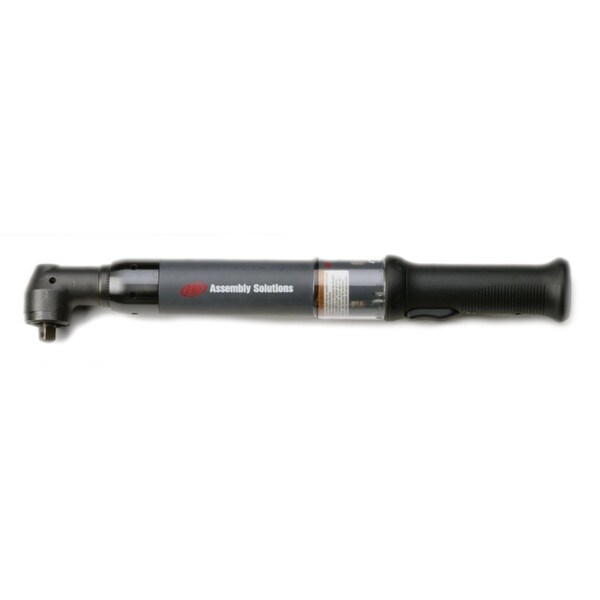

Ingersoll Rand Angle Head DC Electric Nutrunner, 13 Nm, 3/8 in. square drive

Angle Head DC Electric Nutrunner, 13 Nm, 3/8 in. square drive, model# QE4AT013PA2S06. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!

QE4AT013PA2S06 by Ingersoll Rand

The QE4 Angle wrenches are durable and high-speed. With a torque range of 0.3 Nm to 400 Nm and up to 1,200 RPM, this series has the accuracy and durability to meet any fastening requirements you have.

Features

  • ESD-Safe & RoHS compliant
  • Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
  • Productivity - The QE4 Angle series comes with a multitude of features, specially designed to enhance user experience without distracting from your task at hand, allowing you to continue your work without slowing down.
  • Highly Configurable Platform - This series comes with the ability to alter output torque, body style, actuation and spindle type, so you can have the exact features you need for every application.
  • Reliable - Built with a brushless DC motor, non-contacting switches and a heavy duty gear train, this series is meant to be as reliable as it is efficient. And with preventative maintenance alarms and high temperature motor protection, you wonÂ’t have to worry about your tool failing you in the middle of a job.

Note: IC12D1A1AWS Controller required

Features & Benefits

  • Comes with the ability to alter output torque, body style, actuation and spindle type
  • Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
  • ESD-Safe & RoHS compliant
  • Closed loop transducerized control provides accuracy and traceability for advanced torque control strategies.

Technical Specifications

Model
QE4AT013PA2S06
Stat 1
3/8" Square Drive
Stat 2
1.3 - 13 Nm
Type
Electric Nutrunner
Drive size
3/8'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 4
Length (mm)
383
Free Speed (RPM)
1200
SKU
QE4AT013PA2S06
Stock Code
3
Start Type
Trigger Start
Style
Angle Head
Min Torque (Nm)
2.6
Max Torque (Nm)
13
ESD Compliant
Yes
Mounting
Standard Gearcase
Max Free Speed (rpm)
1200
Output
Size 2
Weight (lbs)
2.87
Series
QE4
Drive Type
3/8'' square
Weight (kg)
1.3
