QE4PT020P10S06 | Electric Nutrunner, 20 Nm, 3/8'' square
Overview

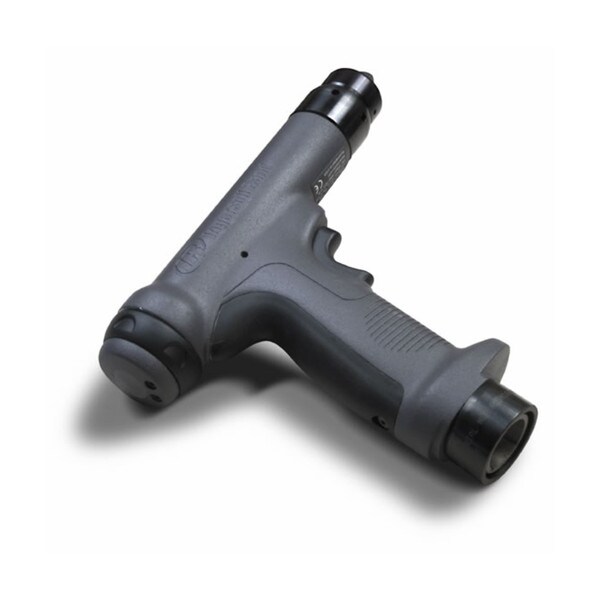

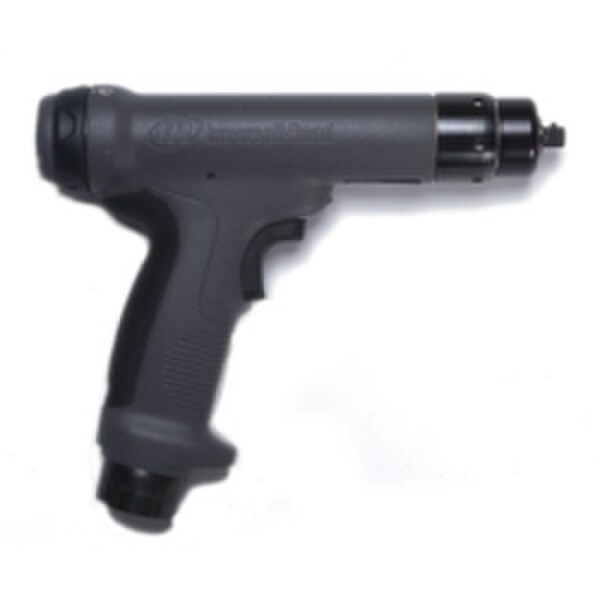

Ingersoll Rand Pistol Grip DC Electric Nutrunner, 20 Nm, 1/4 in. square drive
Pistol Grip DC Electric Nutrunner, 20 Nm, 1/4 in. square drive, model# QE4PT020P10S06. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE4PT020P10S06 by Ingersoll Rand
The QE4 Angle wrenches are durable and high-speed. With a torque range of 0.3 Nm to 400 Nm and up to 1,200 RPM, this series has the accuracy and durability to meet any fastening requirements you have.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- Productivity - The QE4 Angle series comes with a multitude of features, specially designed to enhance user experience without distracting from your task at hand, allowing you to continue your work without slowing down.
- Highly Configurable Platform - This series comes with the ability to alter output torque, body style, actuation and spindle type, so you can have the exact features you need for every application.
- Reliable - Built with a brushless DC motor, non-contacting switches and a heavy duty gear train, this series is meant to be as reliable as it is efficient. And with preventative maintenance alarms and high temperature motor protection, you wonÂ’t have to worry about your tool failing you in the middle of a job.
Note: IC12D1A1AWS Controller required
Features & Benefits
- Closed loop transducerized control provides accuracy and traceability for advanced torque control strategies.
- Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
- ESD-Safe & RoHS compliant
- Highly configurable platform, allowing you to select output torque, body style, actuation and spindle type
Technical Specifications
Model
QE4PT020P10S06
Type
Electric Nutrunner
Drive size
3/8'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 4
Length (mm)
340
Free Speed (RPM)
900
SKU
QE4PT020P10S06
Stock Code
1
Start Type
Trigger Start
Style
Pistol Grip
Min Torque (Nm)
4
Max Torque (Nm)
20
ESD Compliant
Yes
Mounting
Standard Gearcase
CPN
80175805
Max Free Speed (rpm)
900
Output
Pistol Solid
Weight (lbs)
2.65
Series
QE4
Drive Type
3/8'' square
Weight (kg)
1.2
