QE6AT040PA4S06 | Angle Electric Nutrunner, 40 Nm, 3/8'' square
Overview

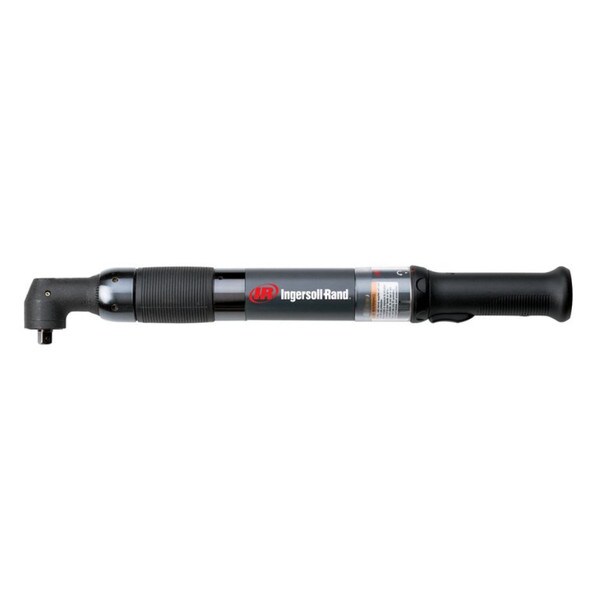

Ingersoll Rand Angle Head DC Electric Nutrunner, 40 Nm, 3/8 in. square drive
Angle Head DC Electric Nutrunner, 40 Nm, 3/8 in. square drive, model# QE6AT040PA4S06. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE6AT040PA4S06 by Ingersoll Rand
With a torque range of 0.3 Nm to 400 Nm and speeds up to 1,280 RPM, the QE6 Angle wrenches are great for any tightening job. Ergonomic, durable and high-speed, these angle wrenches can make all jobs easy.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies and delivers better than 5% capability across motor platforms.
- Reliable - The QE6 Angle is meant to be reliable, and its non-contacting switches, brushless DC motor and heavy duty gear train ensure it is. It also features a preventative maintenance alarm so when your tool is in need of a tune-up, youÂ’ll know ahead of time.
- Versatile - With customizable torque outputs, body configurations, spindle types and actuation, you can make the QE6 Angle into the perfect tool for any application.
Note: IC12D1A1AWS Controller required
Features & Benefits
- Closed loop transducerized control provides exceptionable accuracy and traceability
- Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
- ESD-Safe & RoHS compliant
- Customizable torque outputs, body configurations, spindle types and actuation
Technical Specifications
Model
QE6AT040PA4S06
Type
Electric Nutrunner
Drive size
3/8'' square
Manufacturer
Ingersoll Rand
Motor Type
Type 6
Length (mm)
440
Free Speed (RPM)
910
SKU
QE6AT040PA4S06
Stock Code
3
Start Type
Trigger Start
Style
Angle Head
Min Torque (Nm)
8
Max Torque (Nm)
40
ESD Compliant
Yes
Mounting
Standard Gearcase
CPN
16675472
Max Free Speed (rpm)
910
Output
Size 4
Weight (lbs)
10.80
Series
QE6
Drive Type
3/8'' square
Weight (kg)
4.90
