QE8AT090PA6S08 | Angle Electric Nutrunner, 90 Nm, 1/2'' Square, Size 6
Overview

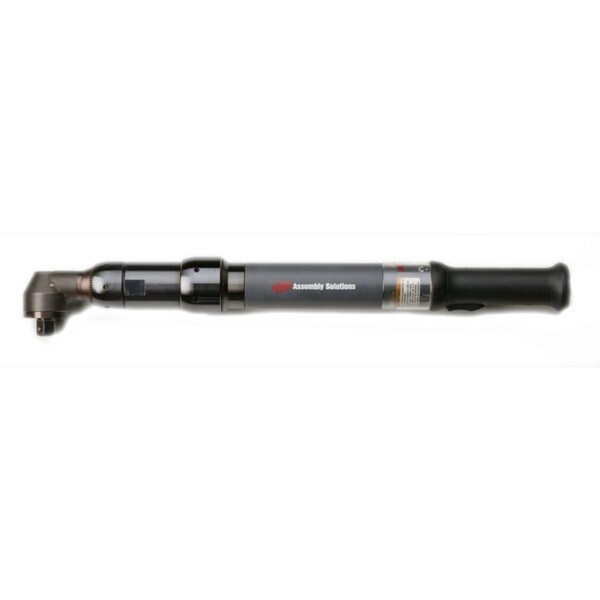

Ingersoll Rand Angle Head DC Electric Nutrunner, 90 Nm, 1/2 in. square drive
Angle Head DC Electric Nutrunner, 90 Nm, 1/2 in. square drive, model# QE8AT090PA6S08. Do you see this Ingersoll Rand DC Electric Nutrunner elsewhere for a lower price? Contact customer service to price match!
QE8AT090PA6S08 by Ingersoll Rand
Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.
Features
- ESD-Safe & RoHS compliant
- Accuracy - The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
- Highly Configurable Platform - You can select output torque, body style, actuation and spindle type, so you can create the perfect tool for each application.
- Reliability - Non-contact switches, Heavy Duty gear train and a brushless DC motor are all used to ensure your tools stay in top condition and perform perfectly every time.
- User Efficiency - Featuring TactAlert, preventative maintenance alarms, LED highlights, a multi-colored light ring, and a push button reverse & indicator light, these wrenches were made with you in mind.
Note: IC12D1A1AWS Controller required
Features & Benefits
- Closed loop transducerized control provides accuracy and traceability for advanced torque control strategies.
- Built with a brushless DC motor, non-contacting switches and a heavy duty gear train
- ESD-Safe & RoHS compliant
Technical Specifications
Model
QE8AT090PA6S08
Type
Electric Nutrunner
Drive size
1/2'' Square
Manufacturer
Ingersoll Rand
Motor Type
Type 8
Length (In)
20.47
Min Torque (Ft Lb)
6.6
Free Speed (RPM)
850
SKU
QE8AT090PA6S08
Stock Code
3
Start Type
Trigger Start
Style
Angle Head
Max Torque (Ft Lb)
66
Min Torque (Nm)
9
Max Torque (Nm)
90
ESD Compliant
Yes
Mounting
Standard Gearcase
Square Drive
1/2
Output
Size 6
Weight (lbs)
6.61
Series
QE8
Drive Type
1/2'' square
