Overview
Makita 18V Cordless Rivet Tool

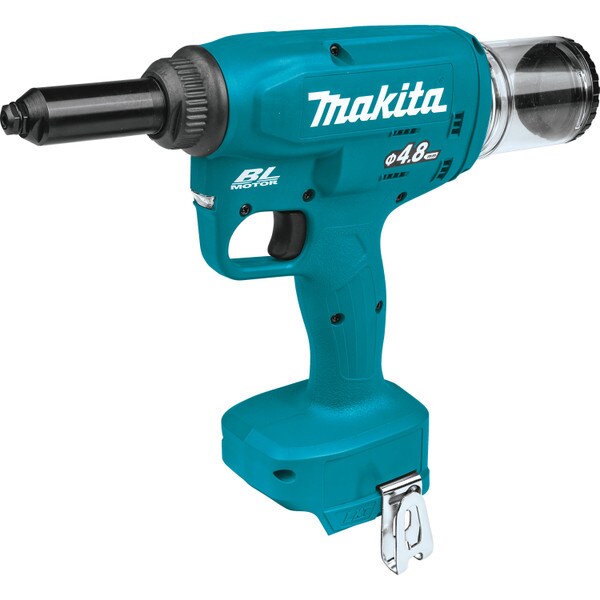

The Makita 18V Cordless Rivet Tool (XVR01Z) is an exceptional and high-quality tool that offers a range of features and benefits that make it a must-have for professionals who need to install or pull aluminum, steel, and stainless steel rivets.
Designed with the needs of professionals in mind, the XVR01Z is a cordless rivet tool that provides the convenience of being untethered from air hoses and accessories. Unlike most rivet guns on the market that run on air, the cordless design eliminates the need for hoses, allowing for greater ease of use.
The tool is designed with an 18V LXT Brushless Motor that delivers a maximum pulling force of 10kN, making it possible to pull and install rivets up to 3/16” (4.8 mm) in diameter. This high pulling force is achieved with a stroke of 25 mm, which sets most rivets in one stroke, increasing productivity and efficiency on the job site.

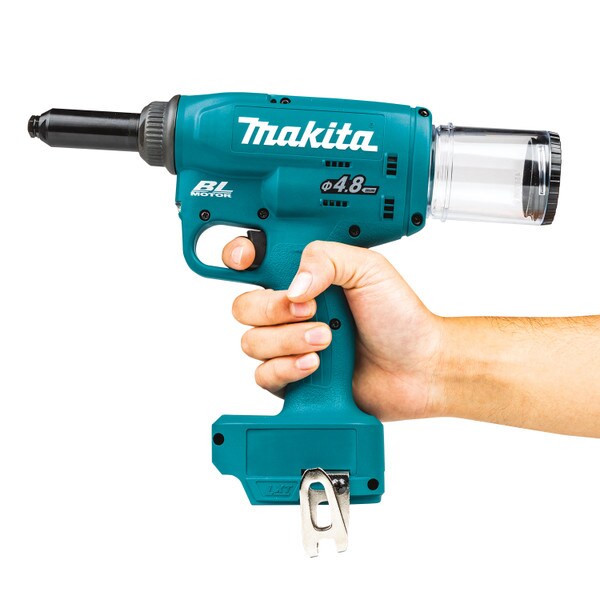

The XVR01Z is a compact tool that is only 12-3/8” long and weighs only 4.9 lbs with the 5.0Ah LXT Battery (sold separately). The tool's lightweight and compact design make it easy to handle and maneuver, even in tight spaces, ensuring precision and accuracy.

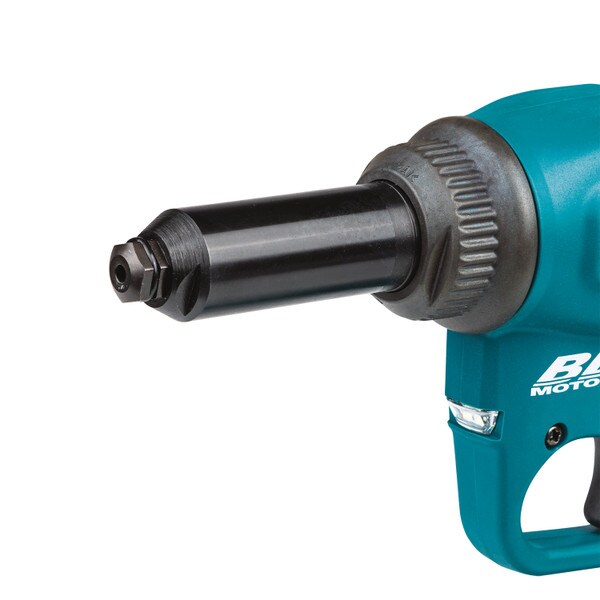

One of the standout features of the Makita 18V Cordless Rivet Tool is its rivet retention feature. This innovative feature frees up your off hand during installation, eliminating the need to hold the rivet in the nose while getting into hard-to-reach areas. Not all rivet guns have this standard feature, making the XVR01Z a highly desirable tool for professionals.

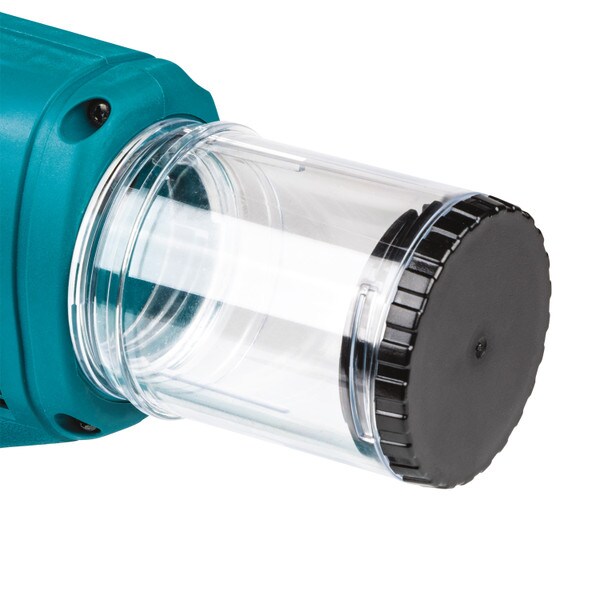

Additionally, the tool comes with a built-in LED light that illuminates the work area, ensuring that the user can see clearly, even in low-light conditions. The transparent mandrel catch container is another notable feature that allows the user to conveniently view the container level and empty it when necessary.
The Makita 18V Cordless Rivet Tool is part of Makita's expanding 18V LXT System, the world's largest cordless tool system powered by 18V lithium-ion slide-style batteries. The 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, ensuring that they spend more time working and less time sitting on the charger.
In addition to its unique features, the Makita 18V Cordless Rivet Tool is available in convenient kits that include the tool itself, a case for storage and transportation, two 18V 5Ah batteries, and a rapid charger.
Features & Benefits
- Pulls rivets with diameters of 2.4mm, 3.2mm, 4.0mm and 4.8mm
- Transparent mandrel container catches mandrel for easy disposal
- Rivet retaining mechanism holds rivet in the nose cone
- Maximum pulling force 10kN
- Built-in LED Light
- Brushless Motor
Technical Specifications
Technical Documents
Makita 2021 Assembly Tool Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What type of rivets can be installed or pulled with the Makita 18V Cordless Rivet Tool?
Is the Makita 18V Cordless Rivet Tool heavy to use?
Does the Makita 18V Cordless Rivet Tool come with a battery?
What is the pulling force of the Makita 18V Cordless Rivet Tool?
How many rivets can the Makita 18V Cordless Rivet Tool pull on a single battery charge?
