WT-205 | Manual Wire Crimp Pull Tester, 200 lbF / 1000 N
Overview

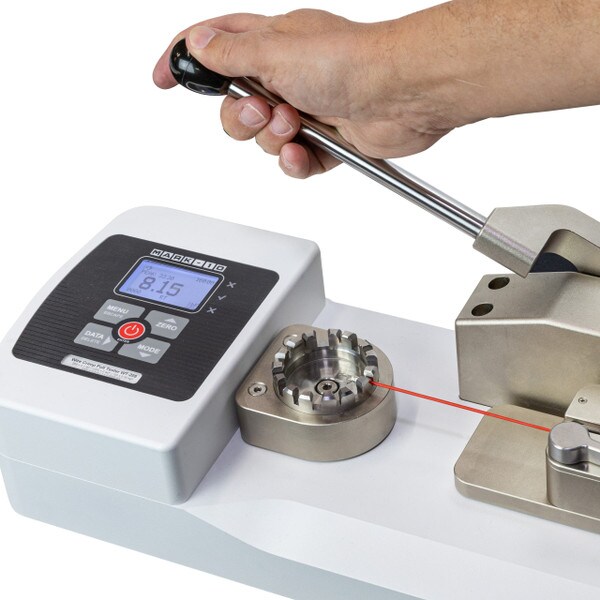

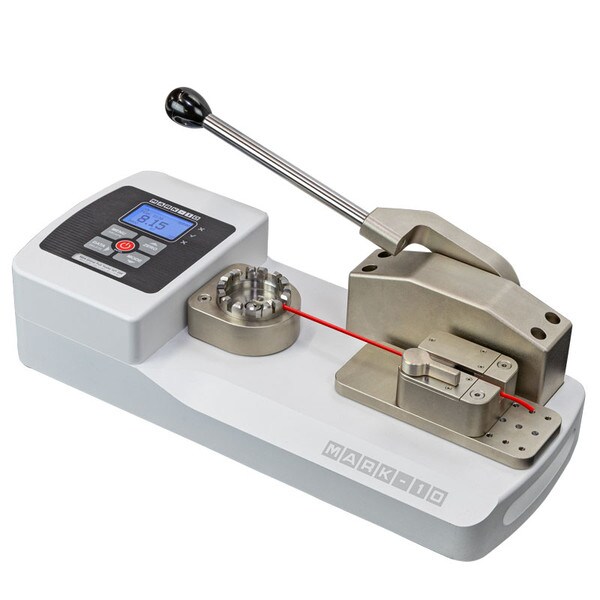

The Mark-10 WT-205 Wire Crimp Pull Tester delivers precision, efficiency, and repeatability in wire crimp testing. Designed to meet quality standards across production lines and laboratories, this manually operated tester accommodates wire sizes up to AWG 3 (0.25 in / 6.3 mm) with its multi-slot terminal fixture. Its self-tightening wedge grip ensures the free end of the wire is securely clamped for consistent results.

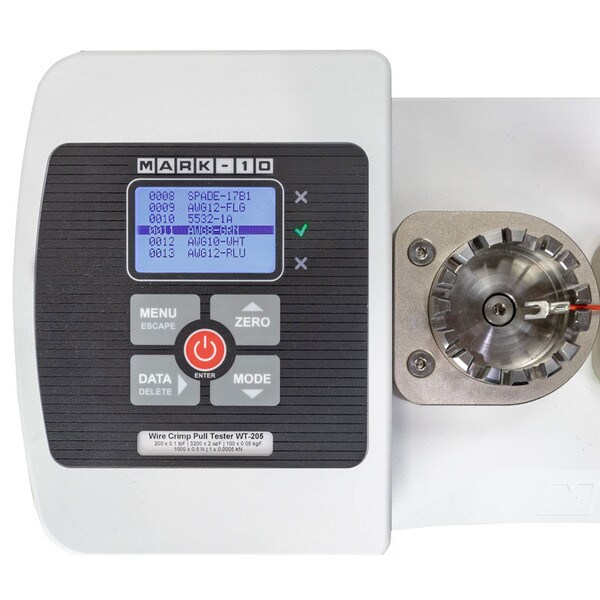

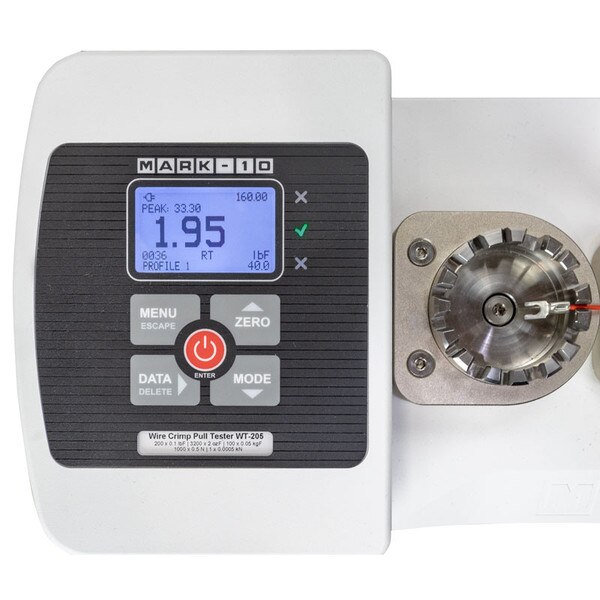

At the core of the WT-205 is a high-resolution, backlit LCD that displays real-time and peak force readings, measurement units, and programmable pass/fail indicators—both visual and audible. The 7,000 Hz sampling rate ensures accurate peak capture, while built-in memory stores up to 1,000 test results with statistical analysis capabilities.

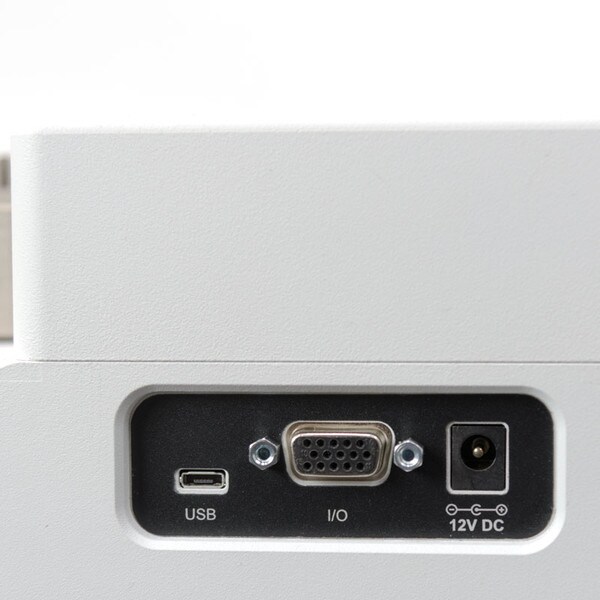

Users can streamline their workflow with automatic data capture, peak detection, and auto-zeroing upon sample break. Data can be exported via USB, RS-232, Mitutoyo (Digimatic), or analog outputs to PCs, data loggers, or quality control systems. With password-protected settings and flexible mounting options, the WT-205 is ready for integration into demanding test environments.
Features & Benefits
- Accurate Force Measurement: Measures real-time and peak pull forces up to 200 lbF (1,000 N) for wire crimp verification.
- Ergonomic Lever Operation: Manual lever design offers controlled application of force with minimal operator fatigue.

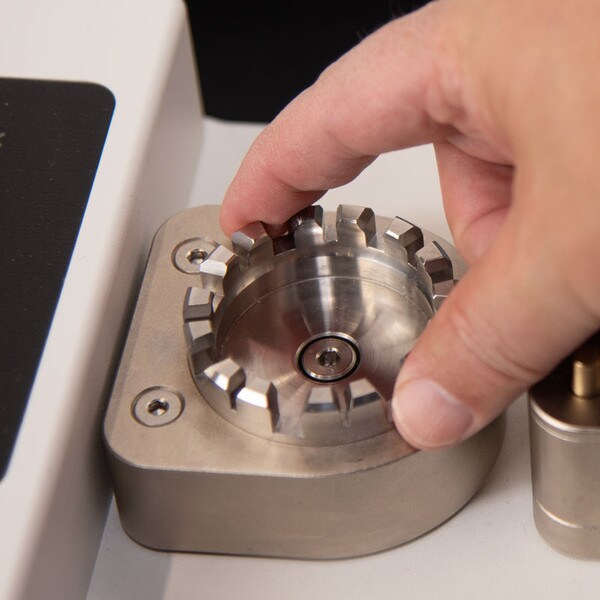

- Secure Clamping: Self-tightening wedge grip provides repeatable and slip-free holding of wire ends.
- Multi-Slot Terminal Fixture: Accommodates wire sizes up to AWG 3 (0.25 in / 6.3 mm) for versatile testing needs.
- Data Handling Efficiency: Automatically captures, stores, and zeros data upon sample break for streamlined workflow.
- Output Versatility: Includes USB, RS-232, Mitutoyo (Digimatic), and analog outputs for easy data integration.
- Memory and Stats: Stores up to 1,000 readings with statistical calculations to track quality trends.
- Fast Sampling Rate: 7,000 Hz sampling ensures accurate peak capture, even for fast breaks.
- Visual and Audible Pass/Fail Feedback: Configurable green/red indicators and audible alerts for quick compliance checks.
- Secure Configuration: Password protection prevents unauthorized changes to test settings.
- Mount-Ready Design: Built-in mounting holes allow for secure bench installation.
Technical Specifications
Technical Documents
Mark-10 WT-205 Manual Wire Crimp Pull Tester DataSheet (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What types of wire sizes can the WT-205 accommodate?
Can the WT-205 automatically store and export data after each test?
Yes, the WT-205 can automatically save the peak force reading upon sample break and export it via USB, RS-232, Mitutoyo, or analog outputs.
Is the WT-205 suitable for high-volume production environments?
Absolutely. Its ergonomic lever, fast 7,000 Hz sampling rate, and auto-zero/reset functionality make it ideal for high-throughput operations.
Does the WT-205 include pass/fail indicators?
Yes. It features programmable pass/fail thresholds with visual (green/red) indicators and audible alerts for fast compliance verification.
Can I restrict access to test settings?
Yes, the WT-205 includes password protection to prevent unauthorized modifications to testing parameters.
