MNE-A | Nitrogen Regulator
Overview

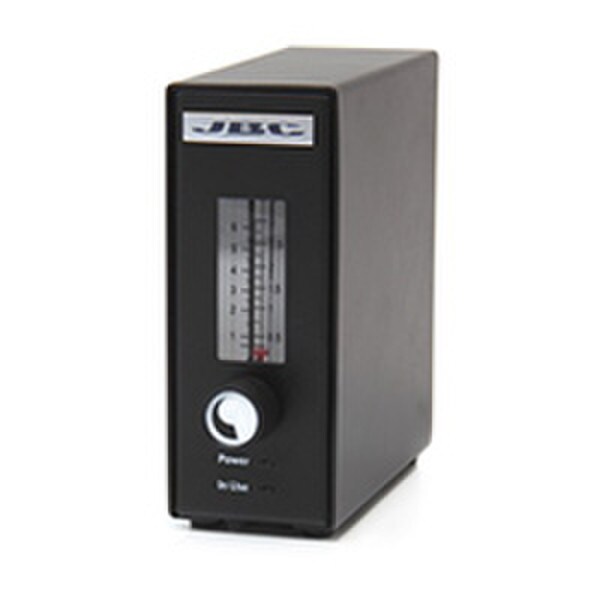

JBC MNE-A
Nitrogen flow regulator for DDE & DME
Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent tip oxidation.
The MNE-A regulates nitrogen flow to the soldering tip in order to optimize consumption.
It automatically activates the flow when you remove the T245-NA handle from the stand. The flow stops when the tool is placed back and the tip temperature drops to the sleep mode.
It requires the GN-A generator or an available nitrogen supply at the operator´s bench.
The MNE-A can be joined to any port of the DDE & DME control units and has the possibility to be controlled by the P-005 Pedal.
Technical Specifications
Permissible ambient temperature - celsius
10 - 40
Voltage
24V
Dimensions -
50 x 120 x 130
Weight - lbs
2.51
ESD Compliant
Yes
Technical Documents
JBC MNE Nitrogen Flow Regulator Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
