18008 | 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1
Overview

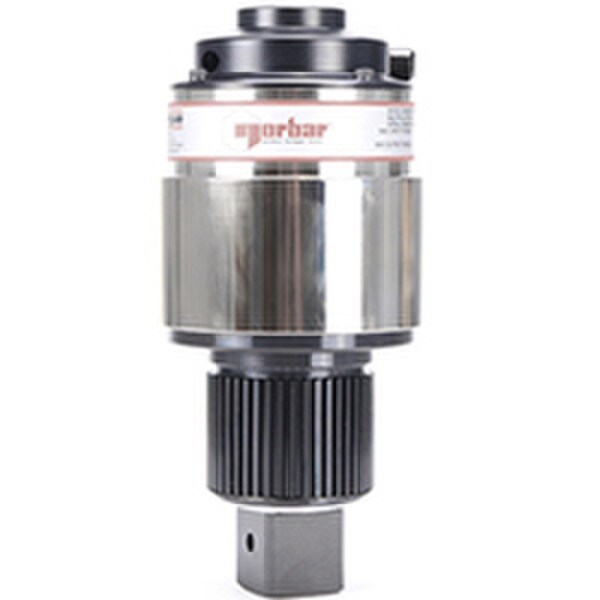

Norbar 1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1
18008
1-1/2 in. Square 6000 Nm Torque Multiplier, 1/2 in. input, Anti Wind-Up, 25:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
The HT60 Small Diameter HandTorque Multipliers have a high torque output (up to 6000 N·m) for the gearbox diameter, allowing better access particularly on pipe flanges.
Features:- Reduced diameter allows better access, particularly on pipe flanges.

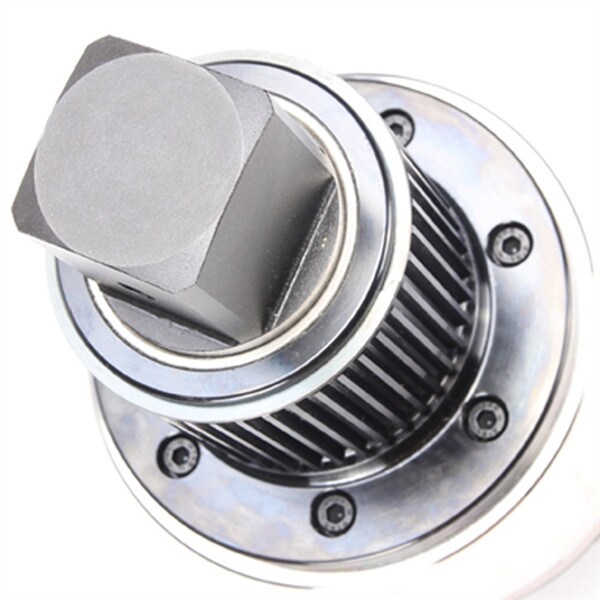

- Reaction taken from high strength spline.

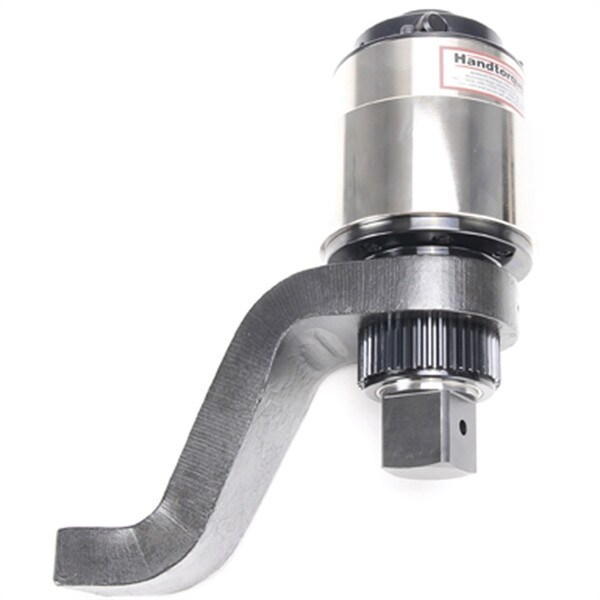

- Reaction foot can slide on the spline to allow for sockets of various lengths.

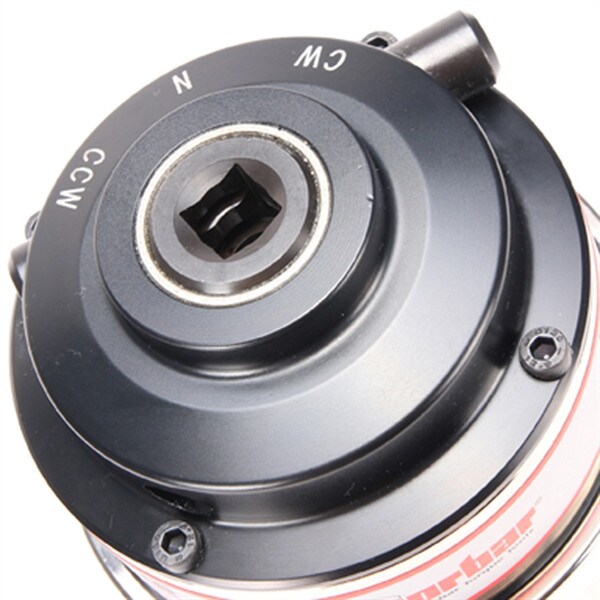

- Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
- HT45 has integral angle protractor for easy torque and angle tightening.
Features & Benefits
- High ratios allow the use of a small torque wrench,multipliers can be used where access is limited.
- True torque multiplication guaranteed better than ±4%.
Technical Specifications
Model
18008
Type
Torque Multiplier
Drive size
1/2'' square
Manufacturer
Norbar
SKU
18008
Max Torque (Ft Lb)
4400
Min Torque (Nm)
600
Max Torque (Nm)
6000
Input Drive (In)
1/2
Weight (lbs)
23.37
Ratio
25:1
Series
Small Diameter HT60
Drive Type
1-1/2 in. Square
Weight (kg)
10.6
Technical Documents
Norbar Handtorque Multipliers Operator Manual (PDF)- Norbar Handtorque Small Diameter Series Torque Multipliers Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
