18103.F08 | PTM-72-1350-F | 1 in. Square 1350 Nm Torque Multiplier, Forward, Stall, 86 rpm
Overview

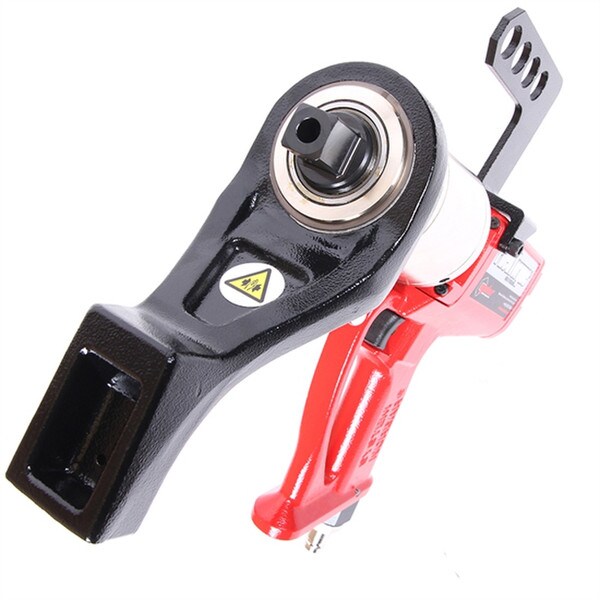

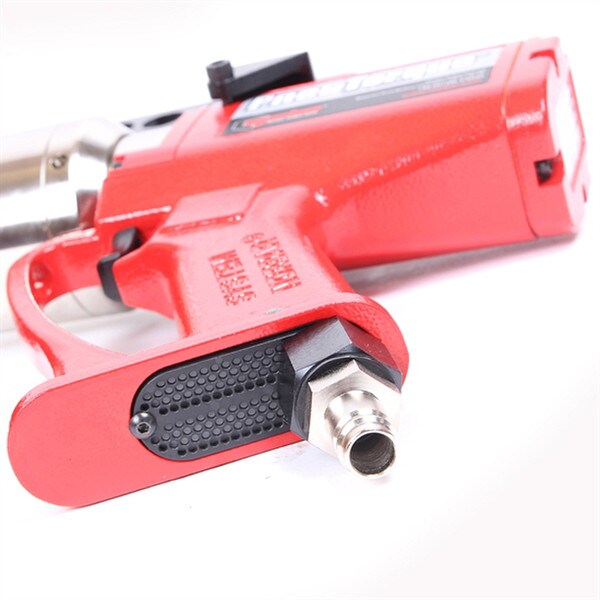

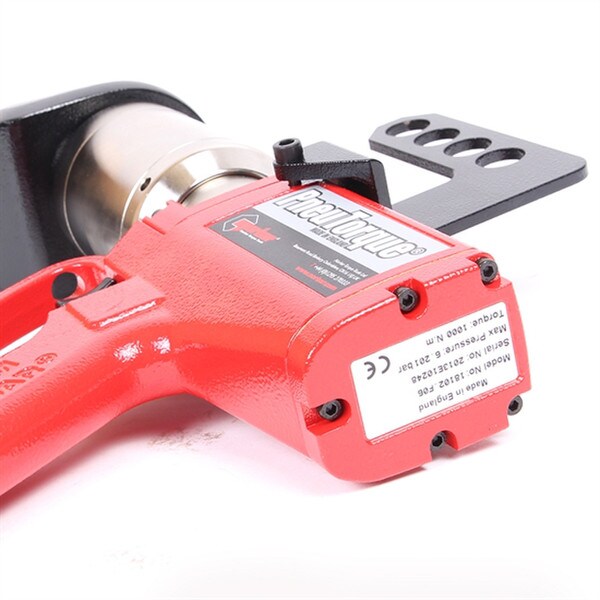

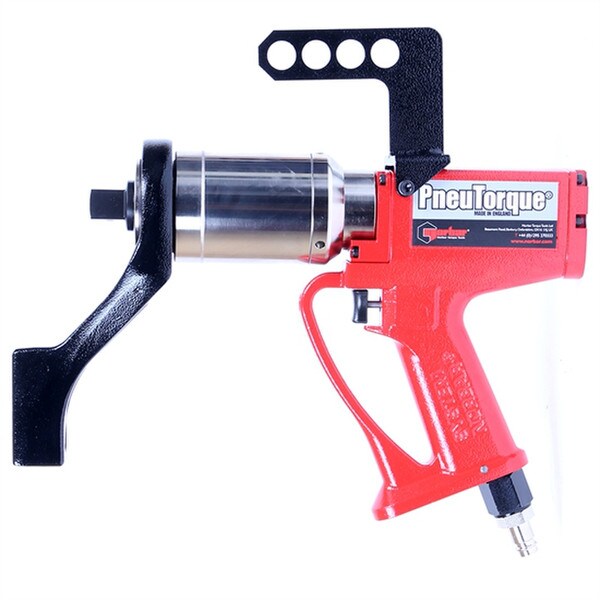

Norbar 1 in. Square 1350 Nm Torque Multiplier, Forward, Stall, 86 rpm
18103.F08
1 in. Square 1350 Nm Torque Multiplier, Forward, Stall, 86 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
Features & Benefits
- Efficient air motor
- Exceptionally low vibration levels
- Light weight design
- Very quiet operation
Technical Specifications
Model
PTM-72-1350-F
Type
Torque Multiplier
Drive size
1'' square
Max Air Pressure (psi)
91
Manufacturer
Norbar
Length (mm)
316
Min Torque (Ft Lb)
200
Free Speed (RPM)
86
SKU
NOR18103.F08
Style
Pistol Grip
Max Torque (Ft Lb)
1000
Min Torque (Nm)
270
Max Torque (Nm)
1350
Direction
Forward only
Weight (lbs)
12.8
Series
PTM-72
Drive Type
1 in. Square
Weight (kg)
5.8
Technical Documents
Norbar Pneutorque PTM Series Torque Multipliers Operator Manual (PDF)- Norbar Pneutorque PTM 72 Series Torque Multipliers Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
