18114.B08 | PTM-72-2000-B-IC | 1 in. Square 2000 Nm Torque Multiplier, Internal Control Shut Off, 58 rpm
Overview

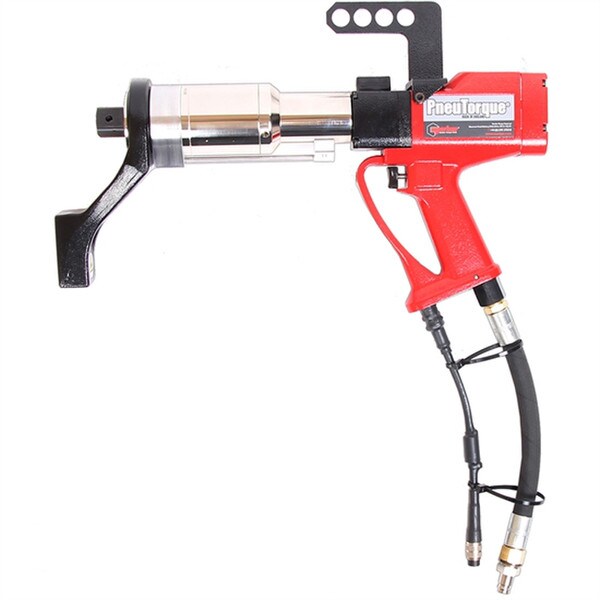

Norbar 1 in. Square 2000 Nm Torque Multiplier, Internal Control Shut Off, 58 rpm
18114.B08
1 in. Square 2000 Nm Torque Multiplier, Internal Control Shut Off, 58 rpm by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
Features & Benefits
- Efficient air motor
- Exceptionally low vibration levels
- Light weight design
- Very quiet operation
Technical Specifications
Model
PTM-72-2000-B-IC
Type
Torque Multiplier
Drive size
1'' square
Max Air Pressure (psi)
91
Manufacturer
Norbar
Length (mm)
453
Min Torque (Ft Lb)
295
Free Speed (RPM)
58
SKU
NOR18114.B08
Style
Pistol Grip
Clutch Type
Internal Control
Max Torque (Ft Lb)
1475
Min Torque (Nm)
400
Max Torque (Nm)
2000
Direction
Bi-directional
Weight (lbs)
17.2
Series
PTM-72
Drive Type
1 in. Square
Weight (kg)
7.8
Technical Documents
Norbar Pneutorque PTM Series Torque Multipliers Operator Manual (PDF)- Norbar Pneutorque PTM 72 Series Torque Multipliers Brochure (PDF)
