16046 | 2 1/2 in. 4400 - 20000 Nm Pneumatic Torque Multiplier
Overview

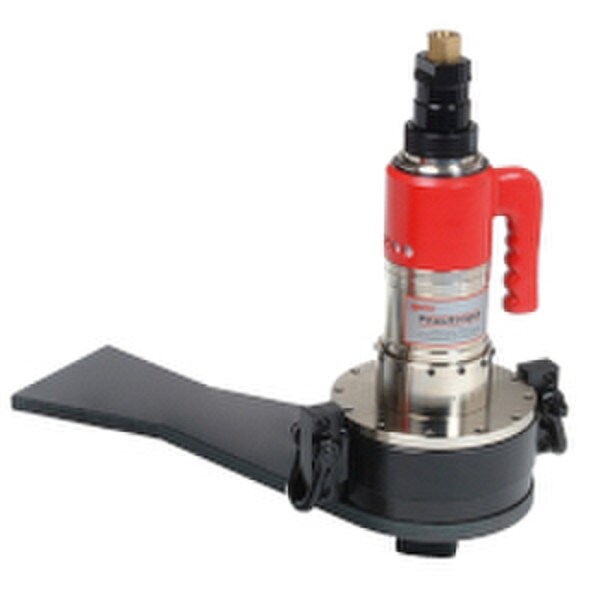

Norbar 2 1/2 in. 4400 - 20000 Nm Pneumatic Torque Multiplier
16046
2 1/2 in. 4400 - 20000 Nm Pneumatic Torque Multiplier Item #16046 by Norbar, available to order online from Flexible Assembly Systems. Do you see the Norbar Pneumatic Torque Multiplier being sold at a lower price? Contact Customer Service about Price Matching!
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range.
Features
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Forward and reverse operation
- Low operator fatigue - quiet, non impacting or pulsing.
- Repeatability of ±5%.
- Models available for almost every bolting application, up to 300,000 N·m.
Technical Specifications
Model
16046
Type
Pneumatic Torque Multiplier
Max Air Pressure (psi)
75.42
Manufacturer
Norbar
Min Torque (Ft Lb)
3250
SKU
NOR16046
Max Torque (Ft Lb)
14700
Min Torque (Nm)
4400
Max Torque (Nm)
20000
Square Drive
2 1/2 in.
Max Torque (Kgf m)
2000
Min Torque (Kgf m)
450
Series
PneuTorques 108 Diameter
Weight (kg)
38.6
Technical Documents
Norbar Pneutorque Standard And Small Diameter Series Stall Tools Operator Manual (PDF)- Norbar Pt Standard Series Torque Multipliers Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
