180202 | HT-52/22 | 3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, 22.2:1
Overview

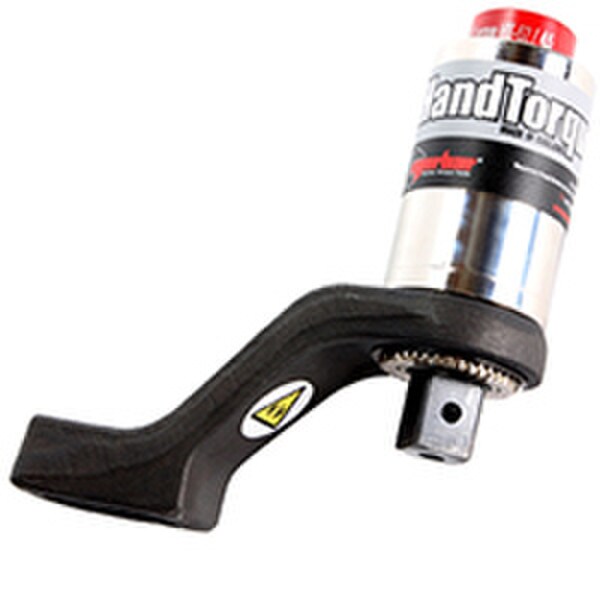

Norbar 3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, 22.2:1
180202
3/4 in. Square 1000 Nm Torque Multiplier, 1/2 in. input, 22.2:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier online at a lower price? Contact Customer Service to price match!

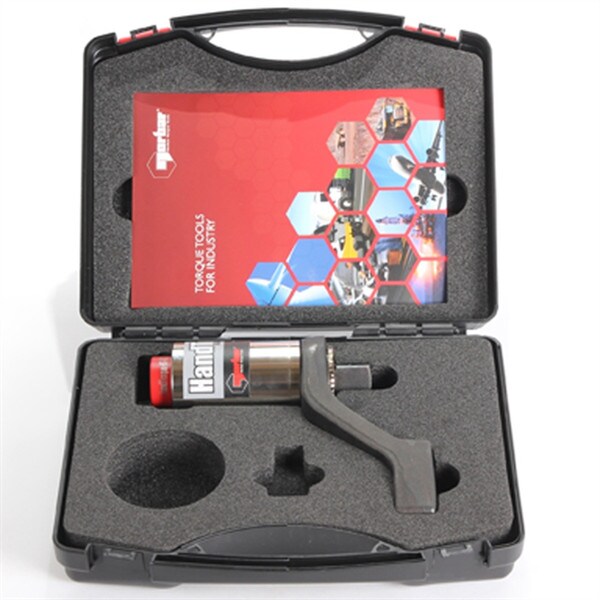

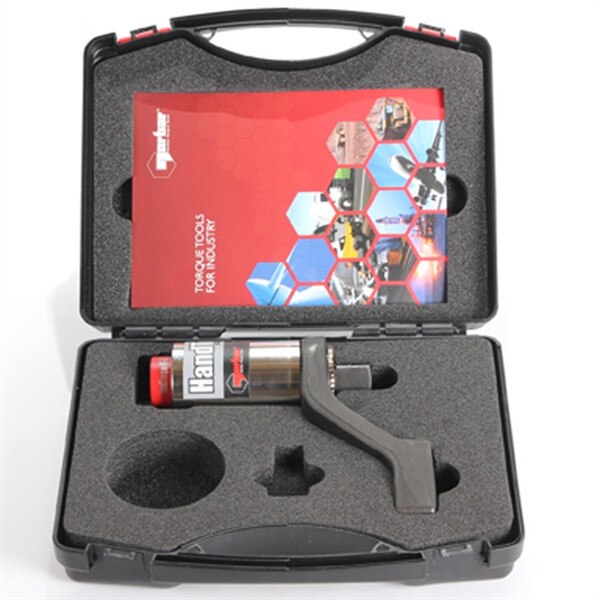

The Norbar"Compact Series" Handtorque multipliers are smaller and lighter than other torque multipliers. They are supplied with a unique calibration certificate and in their own carry case
Features:- Guaranteed accuracy of better than +/-4%.

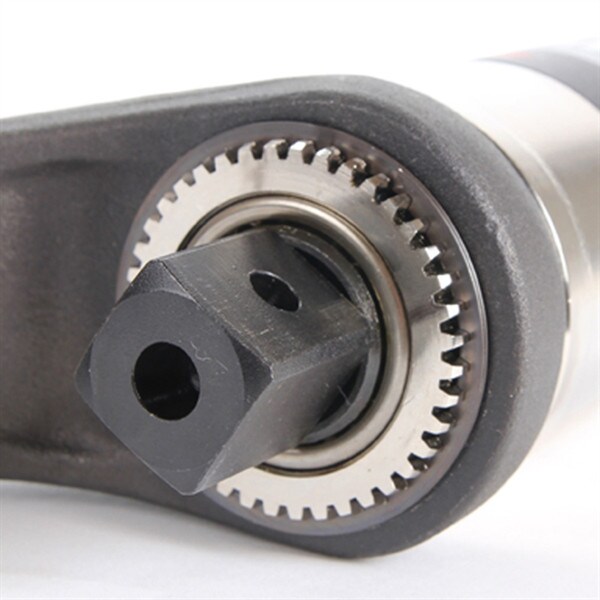

- 52mm diameter allows excellent access.
- Each multiplier is supplied with its own unique calibration certificate allowing the accurate calibration of input torque for critical application. Calibrated from 20% of maximum capacity.
Features & Benefits
- Compact size allows easy access to applications
- Light weight for torque capacity.
- Guaranteed multiplication accuracy of ±4%.
Technical Specifications
Model
HT-52/22
Type
Torque Multiplier
Drive size
1/2'' square
Manufacturer
Norbar
Length (mm)
175
SKU
180202
Max Torque (Ft Lb)
740
Min Torque (Nm)
100
Max Torque (Nm)
1000
Input Drive (In)

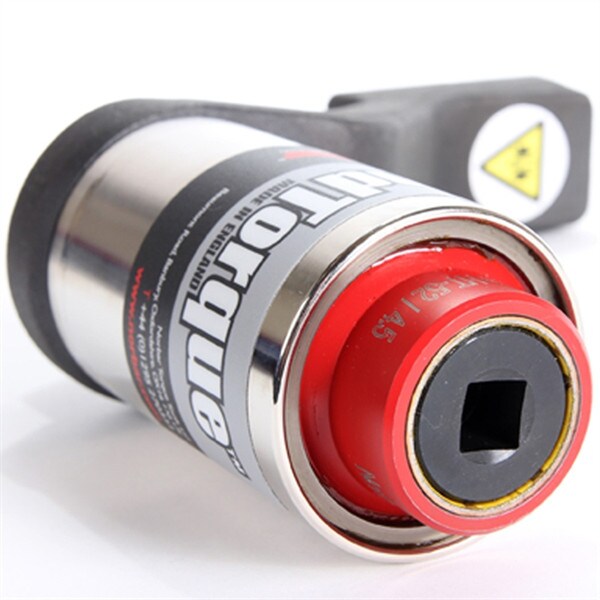

1/2'' square
Output Drive (In)
3/4'' square
Weight (lbs)
0.6
Ratio
22.2:1
Series
HT-52
Drive Type
3/4 in. Square
Weight (kg)
1.4
Technical Documents
Norbar Handtorque Multipliers Operator Manual (PDF)- Norbar Handtorque Compact Series Multipliers Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
