17218 | 3/4 in. Square 1300 Nm Torque Multiplier Head kit, 1/2 in. input, 5:1
Overview

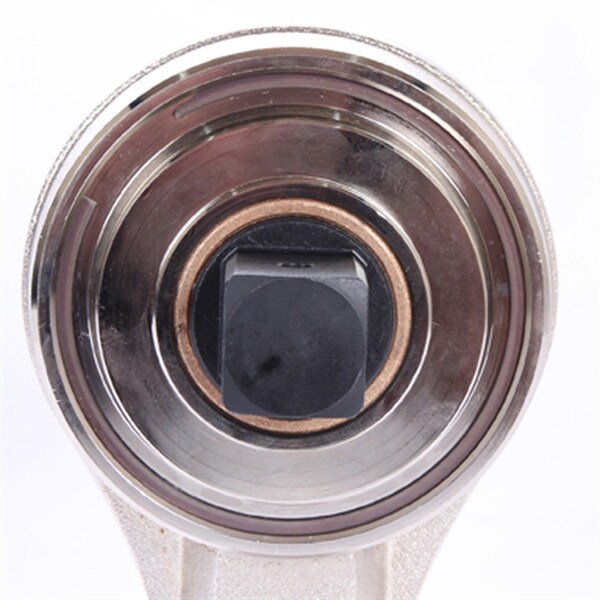

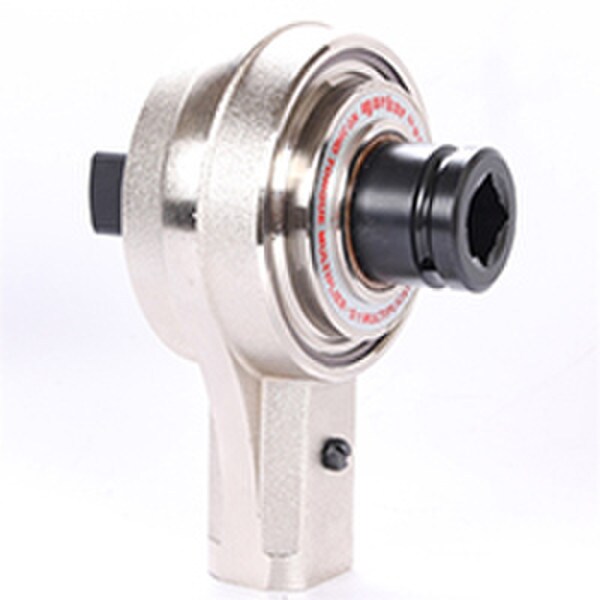

Norbar 3/4 in. Square 1300 Nm Torque Multiplier Head kit, 1/2 in. input, 5:1
17218
3/4 in. Square 1300 Nm Torque Multiplier Head kit, 1/2 in. input, 5:1 by Norbar. Available to order from Flexible Assembly.com. Do you see this Torque Multiplier Head online at a lower price? Contact Customer Service to price match!
The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
Features:- 5:1 torque multiplication, accuracy guaranteed better than +/-4%.
- Robust construction means minimal maintenance and long life.
Features & Benefits
- Robust construction means minimal maintenance and long life.
- 5:1 torque multiplication, accuracy guaranteed better than ±4%.
Technical Specifications
Model
17218
Type
Torque Multiplier Head
Drive size
3/4'' square
Manufacturer
Norbar
SKU
NOR17218
Max Torque (Ft Lb)
960
Min Torque (Nm)
130
Max Torque (Nm)
1300
Input Drive (In)
1/2
Weight (lbs)
8.38
Ratio
5:1
Series
HT3
Drive Type
3/4 in. Square
Weight (kg)
3.8
Technical Documents
Norbar HT3 Highwayman Series Torque Multiplier Operator Manual (PDF)- Norbar HT3 Highwayman Series Torque Multiplier Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
