16008 | 3/4 in. 515 - 1700 Nm Pneumatic Torque Multiplier
Overview

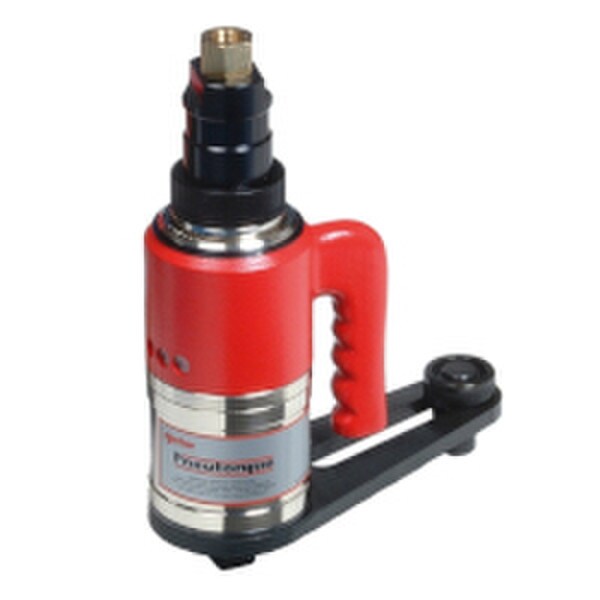

Norbar 3/4 in. 515 - 1700 Nm Pneumatic Torque Multiplier
16008
3/4 in. 515 - 1700 Nm Pneumatic Torque Multiplier Item #16008 by Norbar, available to order online from Flexible Assembly Systems. Do you see the Norbar Pneumatic Torque Multiplier being sold at a lower price? Contact Customer Service about Price Matching!
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range.
Features
- A variety of reaction styles are available for maximum versatility.
- Electronic torque transducers can be fitted for precise torque monitoring.
- Models available for almost every bolting application.
- Forward and reverse operation.
- Low operator fatigue - quiet, non impacting or pulsing.
- Repeatability of ±5%.
Technical Specifications
Model
PT2
Type
Pneumatic Torque Multiplier
Max Air Pressure (psi)
60.92
Manufacturer
Norbar
Min Torque (Ft Lb)
380
SKU
16008
Max Torque (Ft Lb)
1250
Min Torque (Nm)
515
Max Torque (Nm)
1700
Square Drive
3/4 in.
Max Torque (Kgf m)
170
Min Torque (Kgf m)
52
Series
PneuTorques 108 Diameter
Weight (kg)
11.1
Technical Documents
Norbar Pneutorque Standard And Small Diameter Series Stall Tools Operator Manual (PDF)- Norbar Pt Standard Series Torque Multipliers Brochure (PDF)
