11125 | 3/8 in. Square 20 Nm Adjustable Torque Wrench, fixed head
Overview

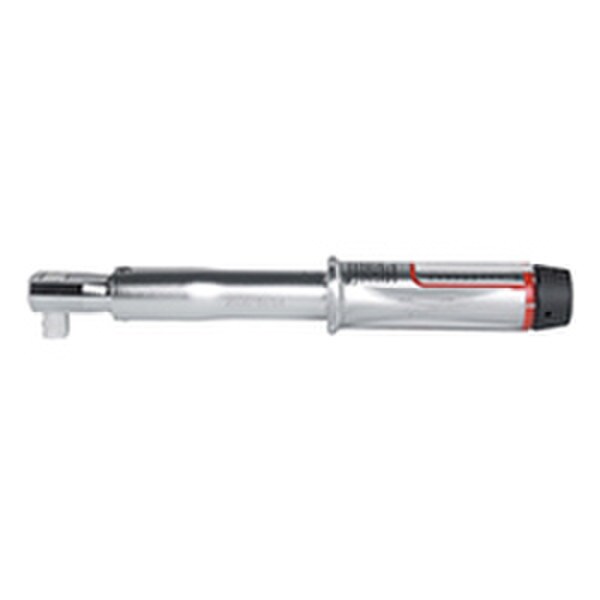

Norbar 3/8 in. Square 20 Nm Adjustable Torque Wrench, fixed head
11125
3/8 in. Square 20 Nm Adjustable Torque Wrench, fixed head by Norbar, available to order online on FlexibleAssembly.com. Do you see the 11125 Adjustable Torque Wrench available for a lower price than what we're advertising? Contact Customer Service to price match!
The SL0 Torque Wrench is the smallest wrench in Norbar's "Slimline" range; with a range of 4 - 20 Nm (40 - 180 lbf in).
Features:- Accuracy exceeds all international standards.
- High quality 72 tooth ratchet allows use in confined spaces.
- Torque Handle versions, both 16mm spigot and 9 x 12mm female.
- Production "P" Type versions designed to discourage unauthorised alteration.
- Unmistakable signal when set torque is reached.
Features & Benefits
- Production 'P' Type versions designed to discourage unauthorised alteration.
- Unmistakable signal when set torque is reached
- Supplied with a Declaration of Conformance,
Technical Specifications
Type
Adjustable Torque Wrench
Drive size
3/8'' square
Wrench Type
Dual Scale, Fixed Head, Adjustable Torque Wrench
Manufacturer
Norbar
Length (mm)
215
SKU
NOR11125
Style
Angle Head
Min Torque (In Lb)
40
Max Torque (In Lb)
180
Min Torque (Nm)
4
Max Torque (Nm)
20
Square Drive
3/8
Weight (lbs)
0.88
Series
SL0
Drive Type
3/8 in. Square
Weight (kg)
0.4
Accuracy
± 3%
Technical Documents
Norbar 3/8 in. Square 20 Nm Adjustable Torque Wrench, fixed head Parts Breakdown (PDF)- Norbar 3/8 in. Square 20 Nm Adjustable Torque Wrench, fixed head Operator's Manual (PDF)
- Norbar SL0 Series Adjustable Torque Wrench Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
