Torsiotronic10 | Electronic Torque Screwdriver,100-1000cNm,nobattery
Overview
The Torsiotronic10 sets a new benchmark in smart torque screwdrivers, combining the reliability of mechanical click-type torque control with advanced digital indication. Designed for demanding, precision-critical applications, this tool enables fast, safe, and documentable tightening operations in confined or hard-to-reach areas.
Key Features
- Hybrid Click + Digital Indication: Combines tactile feedback with a bright OLED screen and LED guidance for complete torque assurance.
- Integrated 80-Tooth Ratchet Bit-Holder: Delivers a fine 4.5° ratchet angle—ideal for tight-clearance spaces requiring sensitive control.
- Overtightening Protection: Integrated slip mechanism engages post-trip to prevent torque overrun.
- Multisensory Feedback: Visual, audible, and tactile signals confirm torque achievement instantly.
- Advanced OLED Display: Battery-efficient, high-contrast display visible from almost any angle, with multilingual support.
- Customizable Parameters: Target torque, tolerance thresholds, and feedback options are all user-configurable.
- Three Operating Modes: Includes First Peak, Track, and Peak Hold for flexible use cases.
- Durable Power System: Rechargeable 3.6V lithium battery (type 18650), easy to swap and packaged per UN 3480 standards.
- Robust Build: Ergonomic, oil/fuel/Skydrol-resistant handle in a high-impact plastic case for field-ready durability.
- Dual Drive System: 1/4" male square drive and 1/4" female square drive (for T-bar handle).
- Units Supported: cN·m, N·m, ft·lb, in·lb, in·oz.
- Standards & Accuracy: Certified to DIN EN ISO 6789-2:2017, ±4% display deviation.
Features & Benefits
- Hybrid Functionality: Combines precision digital display with traditional click-style torque feedback.
- Ultra-Fine Control: 80-tooth ratcheting head with 4.5° working angle for tight spaces.
- Multimode Operation: Use in First Peak, Track, or Peak Hold for specific tightening strategies.
- Digital Storage: Logs up to 2,500 torque events for audit trails or quality assurance.

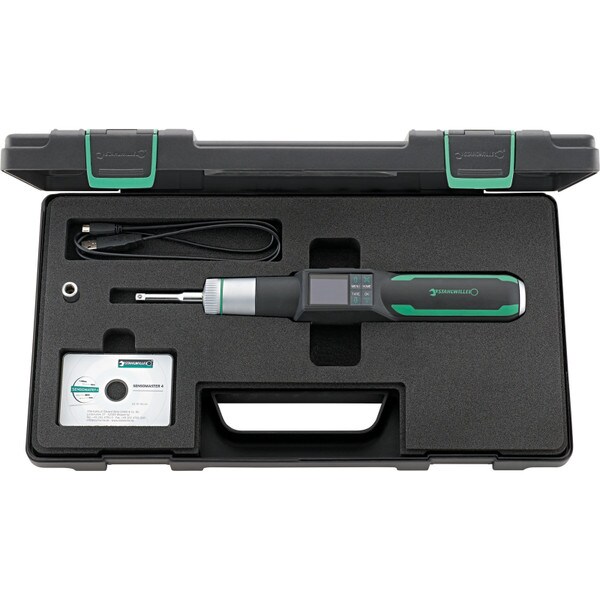

- ReducedKit:Comeswithsoftware,bitholder,T-barhandle,andcarryingcase.
Technical Specifications
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What sets the Torsiotronic10 apart from standard torque screwdrivers?
Can the torque data be exported?
Yes, the Torsiotronic10 can store up to 2,500 torque readings and sequences, which can be exported via USB and SENSOMASTER 4 software.
What types of torque feedback does the Torsiotronic10 provide?
The Torsiotronic10 offers tactile (click), visual (traffic light LEDs and OLED display), and acoustic cues when the target torque is reached.
Is the Torsiotronic10 compatible with standard 1/4" bits and sockets?
Yes, the Torsiotronic10 supports 1/4" male square drive sockets and 1/4" hex bits, plus a 1/4" female square drive in the handle for T-bar use.
What units of measurement are supported?
You can select from cN·m, N·m, ft·lb, in·lb, and in·oz via the intuitive onboard menu system.
