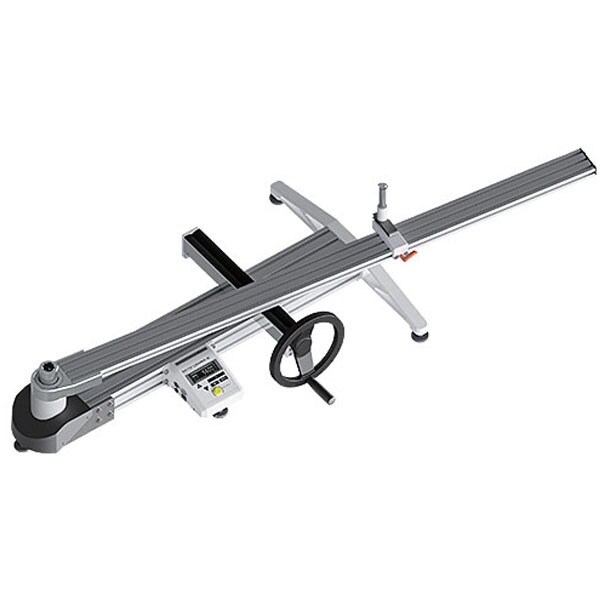

DOTE1000N4-G-MD2 | 100 - 1000 Nm Torque Wrench Tester, Motor Driven Loader
Overview
Introducing the Tohnichi 100 - 1000 Nm Torque Wrench Tester with Motor Driven Loader - a cutting-edge solution for calibrating and adjusting torque wrenches with utmost precision and efficiency. Engineered by Tohnichi, this advanced tester combines exceptional performance with user-friendly features to streamline your quality control processes.
- Min Torque(Nm): 100
- Max Torque(Nm): 1000
- Accuracy: +/- 1% of reading
- Resolution: 0.1 Nm
- Drive Size: 1'' square
- Power Supply: AC 100V, 50/60Hz
- Dimensions(WxDxH)(mm): 440 x 880 x 360
- Weight: 730 kg
Features & Benefits
- Versatile Torque Range: Covering a wide torque range from 100 Nm to 1000 Nm, this tester accommodates various torque wrench capacities, making it a versatile tool for your calibration needs.
- Motor Driven Loader: Equipped with a motor-driven loader, the tester enables smooth and effortless operation, reducing operator fatigue and improving overall productivity.
- Customizable Judgment Patterns: With 10 customizable hi/lo judgment patterns, you can tailor the tester to meet your specific requirements and quality standards.
- Peak/Run Modes: The tester offers both peak and run modes, providing flexibility to capture maximum torque values or continuous running torque measurements.
- Global Units of Measure: The tester supports multiple units of measure, including cNm, Nm, kgf.cm, kgf.m, lbf.in, and lbf.ft, allowing for global compatibility and ease of use.
Technical Specifications
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Videos & Media
introducing the tohnichi 100 - 1000newton meters torque wrench tester with motor driven loader from flexible assembly systems. this state-of-the-art tool is designed to streamline your torque wrench calibration and adjustment processes, delivering unmatched precision and efficiency. with a wide torque range of 100 to 1000 nm, it can accommodate various torque wrench capacities, making it a versatile solution for your calibration needs. the tohnichi torque wrench tester features a motor-driven loader that automatically loads and unloads the torque wrench, reducing manual effort and improving testing efficiency. this innovative feature minimizes the risk of human error and ensures consistent and accurate results. the tester offers both peak and run modes, providing flexibility for different testing requirements. with 10 customizable hi/lo judgment patterns, you can tailor the testing criteria to meet your specific needs. the user-friendly keypad allows for easy selection of global units of measure, including cnm, nm, kgf.cm, kgf.m, lbf.in, and lbf.ft, ensuring compatibility with different regions and applications. the tohnichi torque wrench tester comes with a pole holder and plate, providing a stable and secure platform for testing torque wrenches. these accessories enhance the overall accuracy and reliability of the testing process. with its robust construction and durable components, the tohnichi 100 - 1000 newton meterstorque wrench tester is built to withstand the rigors of daily use in industrial environments. its compact design allows for easy storage and portability, making it an ideal tool for on-site calibration and adjustment tasks. invest in the tohnichi 100 - 1000 nm torque wrench tester with motor driven loader and experience the ultimate in torque wrench calibration and adjustment. contact flexible assembly systems today to learn more about this innovative tool and how it can benefit your business.
