FANUC LR Mate Robot Series
Overview
The LR Mate Robot series offers the smallest models within the FANUC Robot range, with up to 5kg payload. Those Robots are ideal for fast and precise applications in all environments. They run on the R-30iA Mate compact controller, which requires minimum space.
INTEGRATED END EFFECTOR SERVICES
- Pneumatic and electric cabling to the valves placed near the flange, increasing system reliability
- Two standard integrated double acting air solenoids (3rd valve available as option)
FLOOR, CEILING, ANGLE AND WALL MOUNT POSSIBLE
- Robot can be mounted on the floor and on the ceiling without any restrictions, angle and wall mounting possible (with restriction)
- Better use of space within envelope

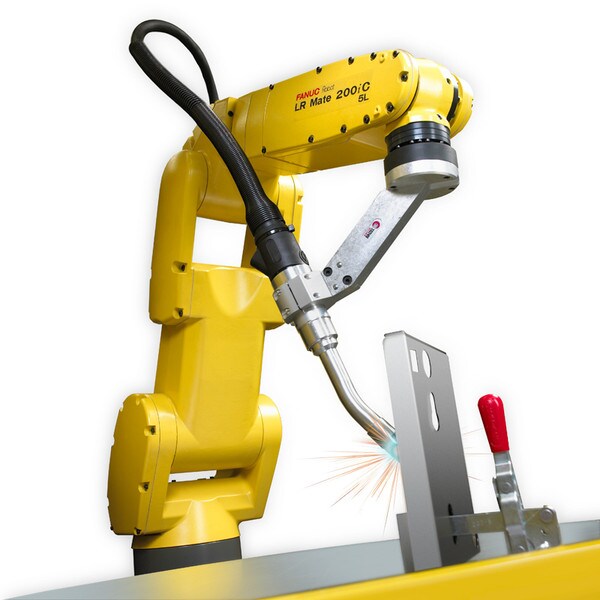

VERY HIGH THROUGHPUT LR Mate 200iC
The LR Mate 200iC brings:
- Calculated TCP speed of more than 4 meters/sec
SEALED MECHANICAL UNITS
- Robot can be mounted inside the machine tool
- Reduced installation costs
COMPACT ROBOT DESIGN
- Easy to integrate into a work cell
- Reduced floor space
- Less interference area
- Reduced investment
SMALL COMPACT CONTROLLER
R-30iA Mate as standard
LR Mate 200iC/5C AND LR Mate 200iC/5LC: CLEANROOM VERSION
- Special treatments for cleanroom (color, covers, bolts, seals, etc)
- Changing solenoid valves and air joints to cleanroom type
- Exhaust port for solenoid valves on J1 base
- Features cleanroom class 100
MOTORS DIRECTLY COUPLED TO THE REDUCER
- Simplified mechanical unit
- Reduced breakdown risk
- Compact and reliable solution
- High accuracy and minimum backlash
FLIP OVER CAPABILITY
- Reduces cycle time
- Allows more flexible cell designs
- Allows several robots to work together
in close proximity - Full working envelope when robot
mounted upside down - No interference with robot itself
Features & Benefits
- Maximum Reach: 550mm-892mm
- Maximum Payload: 5 Kg
- Call Or Email Us For A Quote
- Repeatability: ± 0.02 mm
Technical Documents
LR Mate 200iD 4S Brochure(PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
