Ingersoll Rand BA Air Balancers
Overview

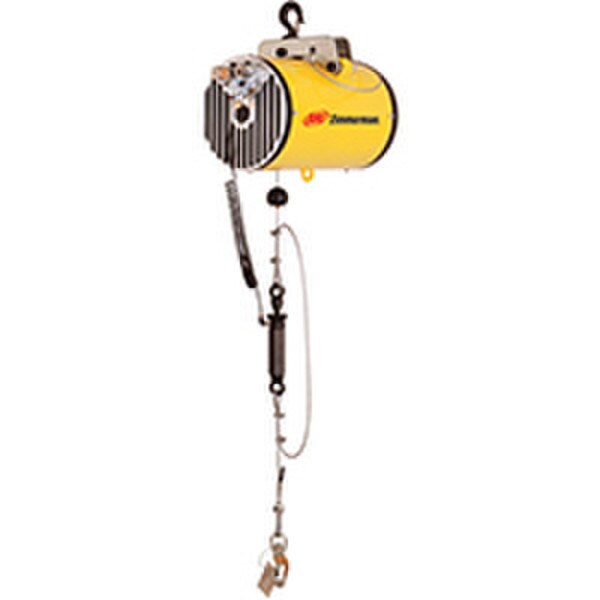

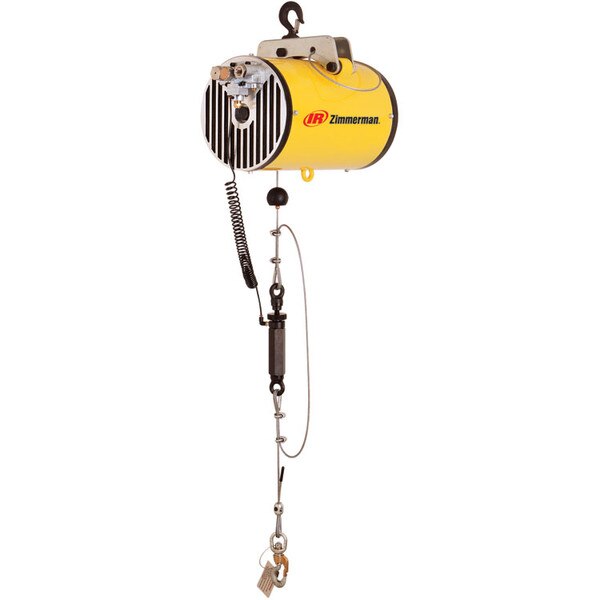

The Ingersoll Rand (BA) Series (Zimmerman) pneumatic balancers operate without pendant controls, making them ideal for single-load suspending applications. They allow loads to be held at a fixed height or manually raised, lowered, and positioned (“floated”) using both hands. With virtually no resistance or perceived weight, operators can maneuver loads effortlessly.
Equipped with a self-relieving regulator, the balancer automatically adjusts airflow to lift, lower, and suspend the load at the desired height. The regulator can also be fine-tuned to gradually raise a load out of the operator’s way. Designed primarily for suspending and positioning constant-weight items, the BA Series balancer enhances precision, control, and efficiency in various applications.
Features & Benefits
- All-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook.
- Include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation.
- If the air supply is ever interrupted, the unit will maintain the load in the suspended position.
- Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake
Technical Documents
Ingersoll Rand BA series Air Balancer Product Information (PDF)- Ingersoll Rand BA series Air Balancer Parts Information (PDF)
- Ingersoll Rand BA series Air Balancer Repair Manual (PDF)
- Ingersoll Rand BA series Air Balancer Installation Guide (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
