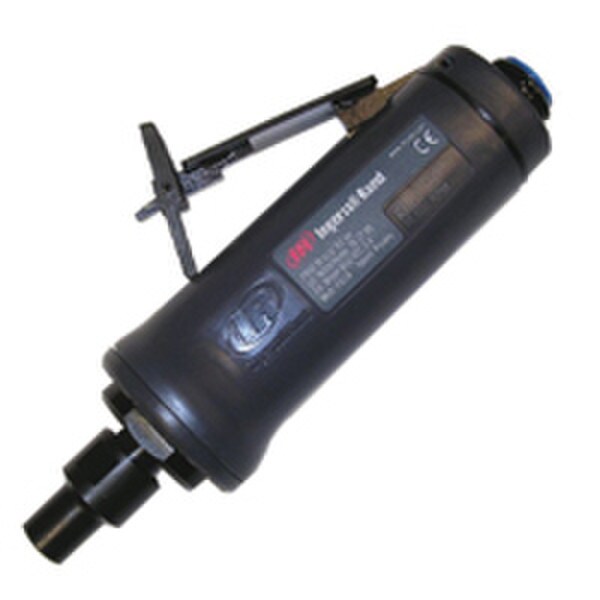

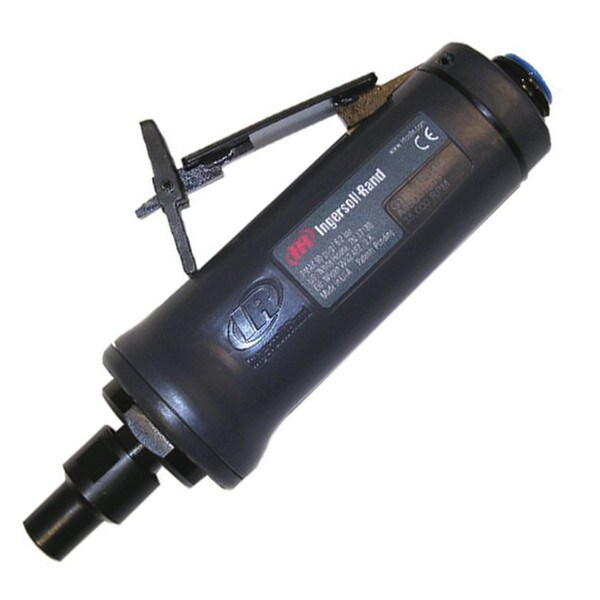

Ingersoll Rand G1 Straight Grinders
Overview
At 0.40 hp (0.30 kW), the G1-Series packs a lot of power in a small package. Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks. The G1-Series also features low noise and vibration levels and one-nut access for all motor servicing. - Improved efficiency means big power in a small package
- Ergonomic D-shaped handle for operator comfort
- Laser-etched product information won't wear off
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
- A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2” Extension )
- 120 = Free Speed (12,000 rpm)
- R = Exhaust Direction (R - rear, F - front, P - piped away)
- P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
- 10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
- 45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard)
- Dual exhaust capabilities
- Ergonomic low-profile locking throttle lever for operator safety
- Composite housing prevent cold feel for operator comfort
- Easy to service one nut removal for motor repair
Features & Benefits
- Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
- Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication
