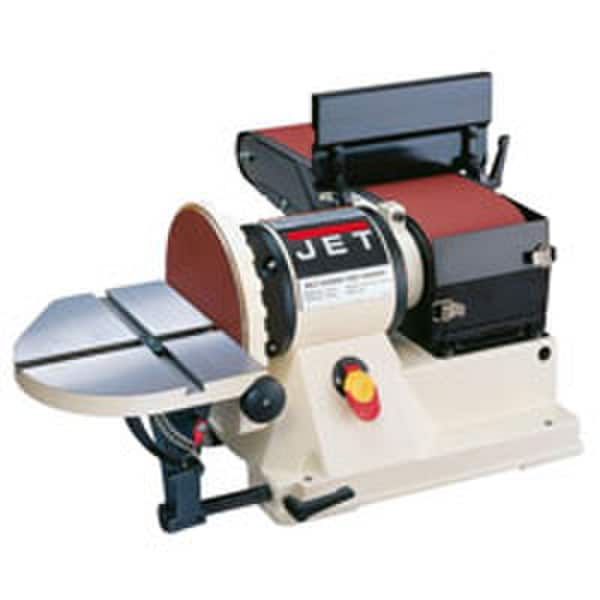

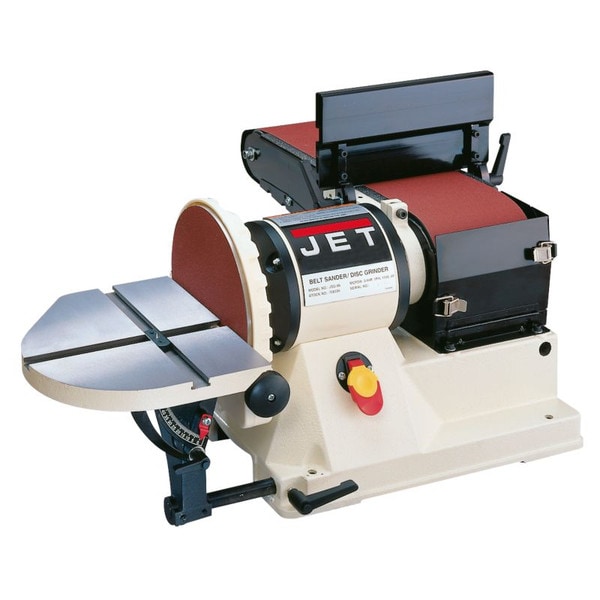

JT9-708595 | JSG-96, Benchtop 6''x48'' Belt / 9'' Disc Sander, 3/4HP 1PH 115V
Overview
Jet 708595
Jsg-96, Benchtop 6"X48" Belt / 9" Disc Sander, 3/4Hp 1Ph 115V
The unique JSG-96 Benchtop Sander combines a 9" disc and 6" x 48" belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint on your bench. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.
Features:- Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
- EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
- Graphite covered steel platen runs cooler increasing machine and belt life
- Specially designed belt guard allows full use of the 6" belt width and length
- Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
- Quick-lock dust cover allows fast disc changes
- Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
- Powerful 3/4HP motor easily handles the toughest sanding operations
- Built-in handles for easier portability
Technical Specifications
Belt Size - inches
48 x 6
Type
Disc Sander, benchtop
Belt Speed - sfpm
2258
Belt Table Size - inches
11 x 5-1/2
Disc Diameter - inches
9
Disc Speed - rpm
1725
Disc Table Size
12 x 7-1/2
Stand Type
Benchtop
Amps
11
Rated Power - hp
.75
Motor Phase
1
Voltage
115V
Motor Type
.75hp, 1ph, 115V
Weight - lbs
91
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
