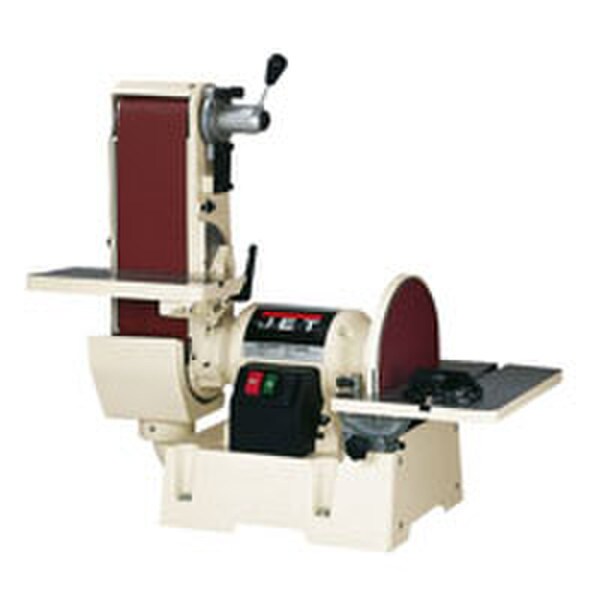

JT9-708599 | JSG-6DC, 6''x48'' Belt / 12'' Disc Sander, 1.5HP 1PH 115/230V

(0)No Reviews yet
$1,599.99
$1965
$365.01
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

Jet 708599

Jsg-6Dc, 6"X48" Belt / 12" Disc Sander, 1.5Hp 1Ph 115/230V

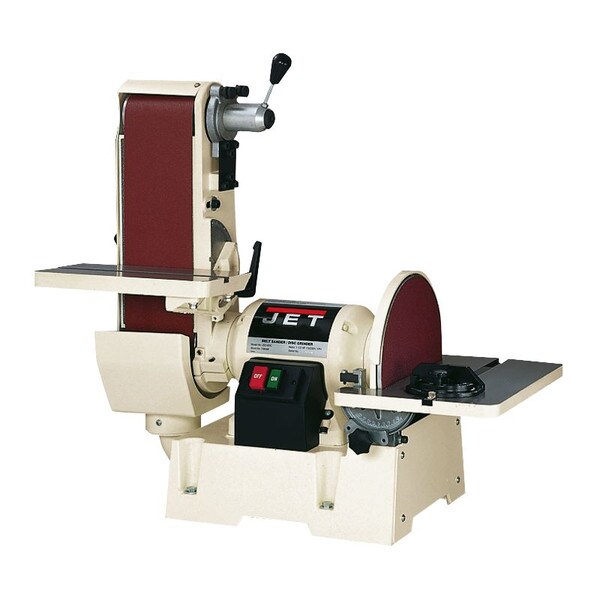

The JET JSG-6DC Sander combines a 12" disc and a 6" x 48" belt to provide raw industrial 1.5 HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick release belt tension lever and a quick lock dust cover for the disc. The built in handle allows for easy portability around the workshop.

Features:
  • Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces or mitered angles; allows belt sander to be used vertically, horizontally or anywhere in-between
  • EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6" belt width and length
  • Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 1-1/2HP motor easily handles the toughest sanding operations
  • Built-in handles for easier portability

Technical Specifications

Belt Size - inches
48 x 6
Type
Disc Sander, benchtop
Belt Speed - sfpm
2500
Belt Table Size - inches
12-1/2 x 7
Disc Diameter - inches
12
Disc Speed - rpm
1725
Disc Table Size
16-1/2 x 10
Stand Type
Benchtop
Amps
12/6
Rated Power - hp
1.5
Motor Phase
1
Voltage
115/230V
Motor Type
1.5hp, 1ph, 115/230V
Weight - lbs
215
