MR53-20Z | Closure Torque Sensor, 20 ozFin / 1400 gFcm / 14 kgFmm / 140 Nmm / 14 Ncm
Overview
Mark-10 Closure Torque Sensor, 20 ozFin / 1400 gFcm / 14 kgFmm / 140 Nmm / 14 Ncm
Closure Torque Sensor, 20 ozFin / 1400 gFcm / 14 kgFmm / 140 Nmm / 14 Ncm, item# MR53-20Z, available to order online from Flexible Assembly Systems. Do you see this Mark-10 Closure Torque Sensor available elsewhere for a lower price? Contact Customer Service to price match!
MR53-20Z Closure Torque Sensor by Mark-10

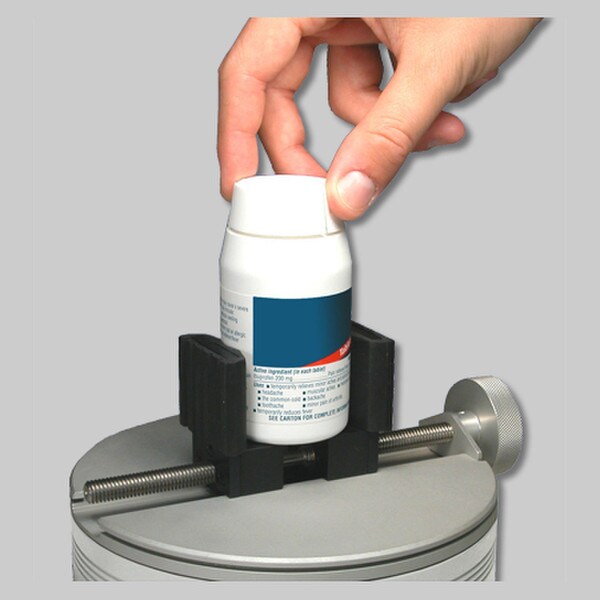

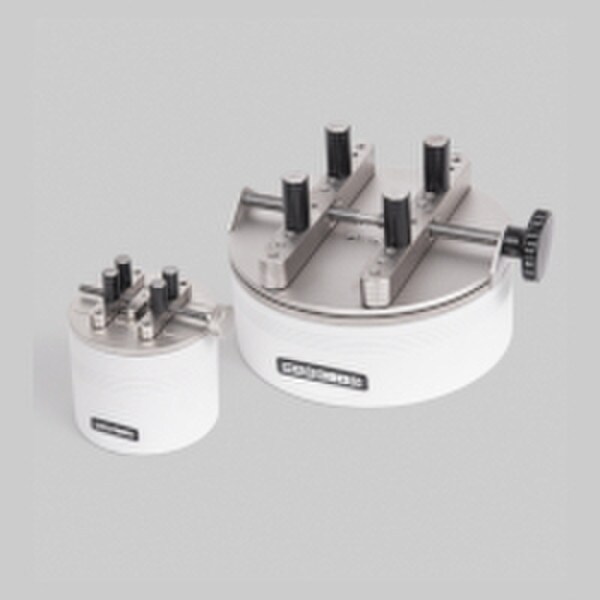

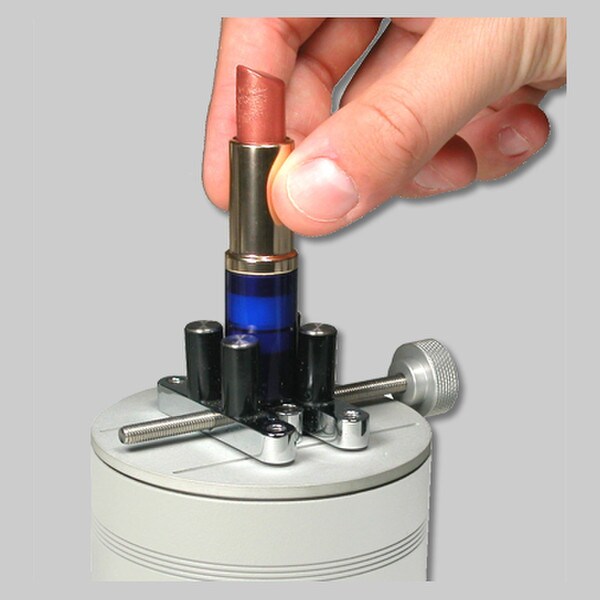

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 [14 - 148 mm] diameter. Models include movable posts to easily accommodate a variety of shapes and sizes, with optional flat and adjustable jaws for unique samples. Capacities available from 10 ozFin to 100 lbFin (7 to 1,150 Ncm)
Technical Specifications
Model
MR53-20Z
Overload Protection
300% of full scale
Type
Closure Torque Sensor
Manufacturer
Mark-10
Capacity
20 ozFin / 1400 gFcm / 14 kgFmm / 140 Nmm / 14 Ncm
SKU
MR53-20Z
Stock Code
2
Series
R53
Accuracy
±0.5% of full scale + indicator
Technical Documents
Mark 10 R53 Closure Torque Sensors Brochure (PDF)- Mark 10 Smart Force and Torque Sensors User Guide (PDF)
- Mark 10 Force and Torque Measurement Product Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
